500mV/g High Sensitivity Accelerometer | Wilcoxon 787-500 Series

1 / 5

Product Specifications

Manufacturer:Wilcoxon Sensing Technologies

Product Number:787-500 Series

Type:High Sensitivity Accelerometer

Sensitivity:500 mV/g (±5%)

Measurement Range:10 g peak

Frequency Response:±10% 0.5-5,000Hz; ±3dB 0.2-10,000Hz

Resonance Frequency:22 kHz

Output Impedance:100 Ω max

Vibration Limit:500 g peak

Shock Limit:5,000 g peak

Housing Material:316L Stainless Steel

Sealing:Hermetically Sealed

Features:Case Isolated, Internally Shielded

Sensing Element:PZT Ceramic / Shear

Connector Options:MIL-C-5015 2-pin or M12 4-pin

Application:Industrial Vibration Monitoring, Condition Monitoring

Documents: Product Specs (6 Files)

Warranty:One Year

Product Description

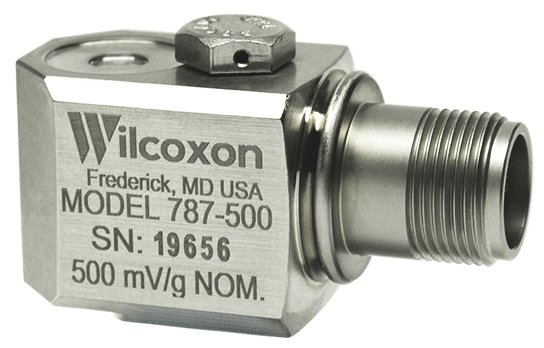

The Wilcoxon Sensing Technologies 787-500 series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and features extended low frequency response, clear signals at low vibration levels, and improved signal to noise ratio.

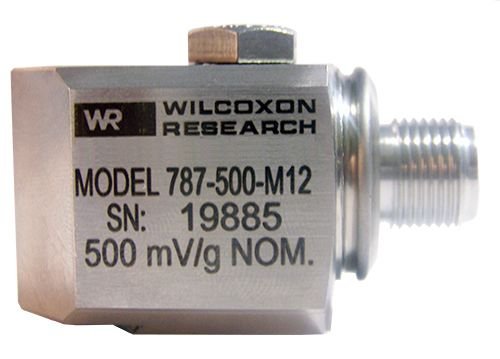

The 787-500 has a 500mV/g, ±5% sensitivity tolerance, and is case isolated and internally shielded. The 787-500 basic models feature a 1/4-28 captive hex head screw with 0.046" diameter safety wire hole and a MIL-C-5015 2-pin connector. M12 models feature a M6 captive screw and a M12 4-pin connector.

The 787-500 is manufactured in an ISO 9001 facility.

Features

10g peak acceleration range
500g peak vibration limit
5,000g peak shock limit
Frequency response:
- ±10%: 0.5 to 5,000Hz
- ±3 dB: 0.2 to 10,000Hz
22kHz resonance frequency
100Ω max output impedance
Hermetic sealing
PZT ceramic / shear sensing element
Connector:
- 787-500, 787-500-D2, 787-500-IS: MIL-C-5015, 2-pin
- 787-500-M12, 787-500-M12-D2, 787-500-M12-IS: M12 style, 4-pin
