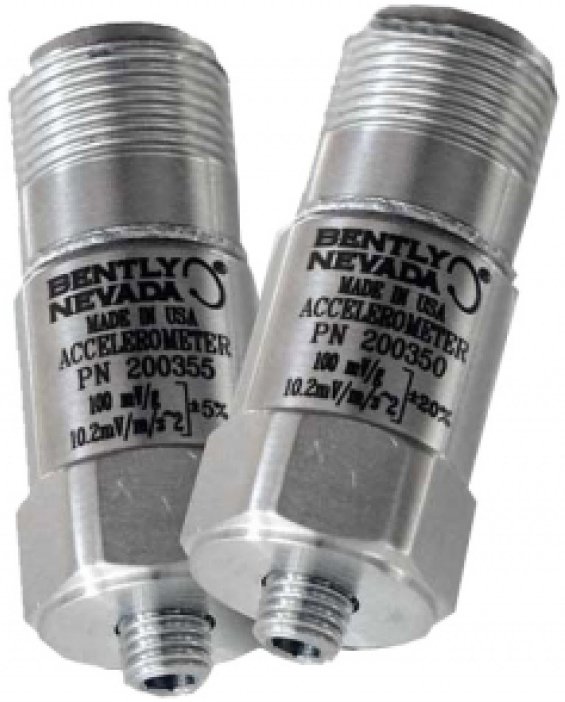

The Bently Nevada 200350 / 200355 Accelerometers are general purpose, case-mounted seismic transducers designed for use with Trendmaster Pro Constant Current Direct Input Card 149811-02 and the Seismic Direct Input Card 164746-01. The 200350 and 200355 Accelerometers are contained within a hermetically sealed, stainless steel case. The design provides an extremely rugged transducer, well suited for harsh industrial environments. Each transducer's top mounted, 2-pin connector (MIL-C-5015) allows for easy installation and removal of the interconnecting signal cable. A 1/4-28 threaded hole on the bottom of the casing accommodates multiple mounting options.

Features

• ±50g measuring range
• Sensitivity:
  • 200350: 100 mV/g ±20% (1.2 mV/g ±20%)
  • 200355: 100 mV/g ±5% (1.2 mV/g ±5%)
• Frequency range:
  • 200350: 30 to600,000 cpm (0.5 to 10,000 Hz)
  • 200355: 12 to 600,000 cpm (0.2 to 10,000 Hz)
• -65 to 250°F (-54 to 121°C) operating temp
• Stainless steel case
