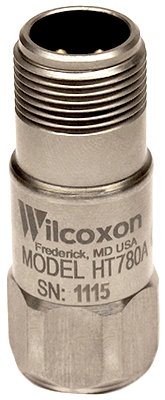

The Wilcoxon Sensing Technologies HT780A accelerometer is compact, lightweight, and rated for high temperature applications. It is constructed with 316L stainless steel and is case isolated and internally shielded. The HT780A's rugged, hermetically sealed design has a 1/4-28 UNF tapped hole for mounting and a 2-pin MIL-C-2015 style connector. The HT780A features ESD and reverse wiring protection and is manufactured in an approved ISO 9001 facility.

Features

• 80g peak acceleration range
• 500g peak vibration limit
• 5,000g peak shock limit
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 1 to 9,000Hz
  • ±3 dB: 0.5 to 14,000Hz
• 30kHz resonance frequency
• Power requirements:
  • Voltage source: 18 - 30VDC
  • Current regulating diode: 2 - 10mA
• 100Ω max output impedance
• Hermetic sealing
• 2-pin MIL-C-5015 connector
• PZT ceramic / shear sensing element
