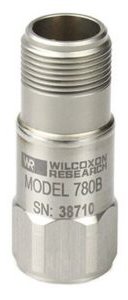

The Wilcoxon Sensing Technologies 780B compact accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and is equipped with a MIL-C-5015 2-pin connector. The accelerometer is case isolated, with 100mV/g sensitivity and ±10% sensitivity tolerance.

The 780B is manufactured in an ISO 9001 facility, ensuring consistent quality and performance for industrial applications.

Features

• Dynamic vibration (IEPE) sensor output for accurate vibration detection
• 100mV/g sensitivity with ±10% sensitivity tolerance
• Wide frequency response: 0.5 to 14,000Hz
• PZT shear sensing element design for reliable signal collection
• MIL-C-5015 2-pin connector for standard and secure connection
• 80g peak FS range to meet industrial monitoring needs
• 30kHz resonance frequency for stable operation at high frequencies
• Durable 316L stainless steel construction for long service life
• SF6 mounting stud included for convenient installation
• Case isolated design to reduce interference
