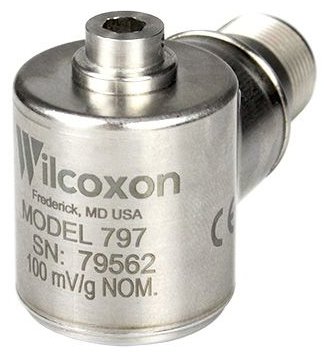

The Wilcoxon Sensing Technologies 797 high performance accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and hermetically sealed, ensuring durability in industrial environments. For installation, it features a 1/4-28 captive socket head with a 0.062" diameter safety wire hole, and is equipped with a MIL-C-5015 2-pin output connector. The accelerometer is case isolated, with 100mV/g sensitivity and ±5% sensitivity tolerance.

The 797 accelerometer is manufactured in an ISO 9001 facility, adhering to strict quality control standards for consistent performance.

Features

• Dynamic vibration (IEPE) sensor output for accurate vibration detection
• 80g peak acceleration range to meet various industrial monitoring needs
• 1% amplitude nonlinearity for high measurement precision
• Frequency response:
  • ±5%: 3 to 5,000Hz
  • ±10%: 2 to 7,000Hz
  • ±3 dB: 1 to 12,000Hz
• 26kHz resonance frequency for stable operation at high frequencies
• 100Ω max output impedance for efficient signal transmission
• 500g peak vibration limit and 5,000g peak shock limit for strong environmental adaptability
• Hermetic sealing to prevent dust, moisture, and other contaminants from entering
• PZT ceramic / shear sensing element for reliable and consistent vibration signal collection
• MIL-C-5015 2-pin connector for secure and standard connection
