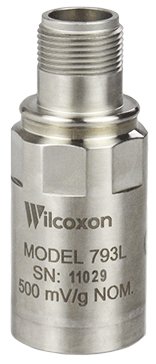

The Wilcoxon Sensing Technologies 793L low frequency accelerometer is designed for long-term, reliable use. It is low pass filtered to attenuate high frequencies, and features ultra low-noise electronics for clear signals at very low vibration levels.

The 793L features a 316L stainless steel case and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793L is case isolated and internally shielded, and features 500mV/g sensitivity and ±5% sensitivity tolerance.

The 793L accelerometer is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 10g peak acceleration range
• 1% amplitude nonlinearity
• Frequency response:
  • ±5%: 0.6 to 700Hz
  • ±10%: 0.4 to 1,000Hz
  • ±3 dB: 0.2 to 2,300Hz
• 15kHz resonance frequency
• 100Ω max output impedance
• 250g peak vibration limit
• 5,000g peak shock limit
• Hermetic sealing
• MIL-C-5015 2-pin connector
