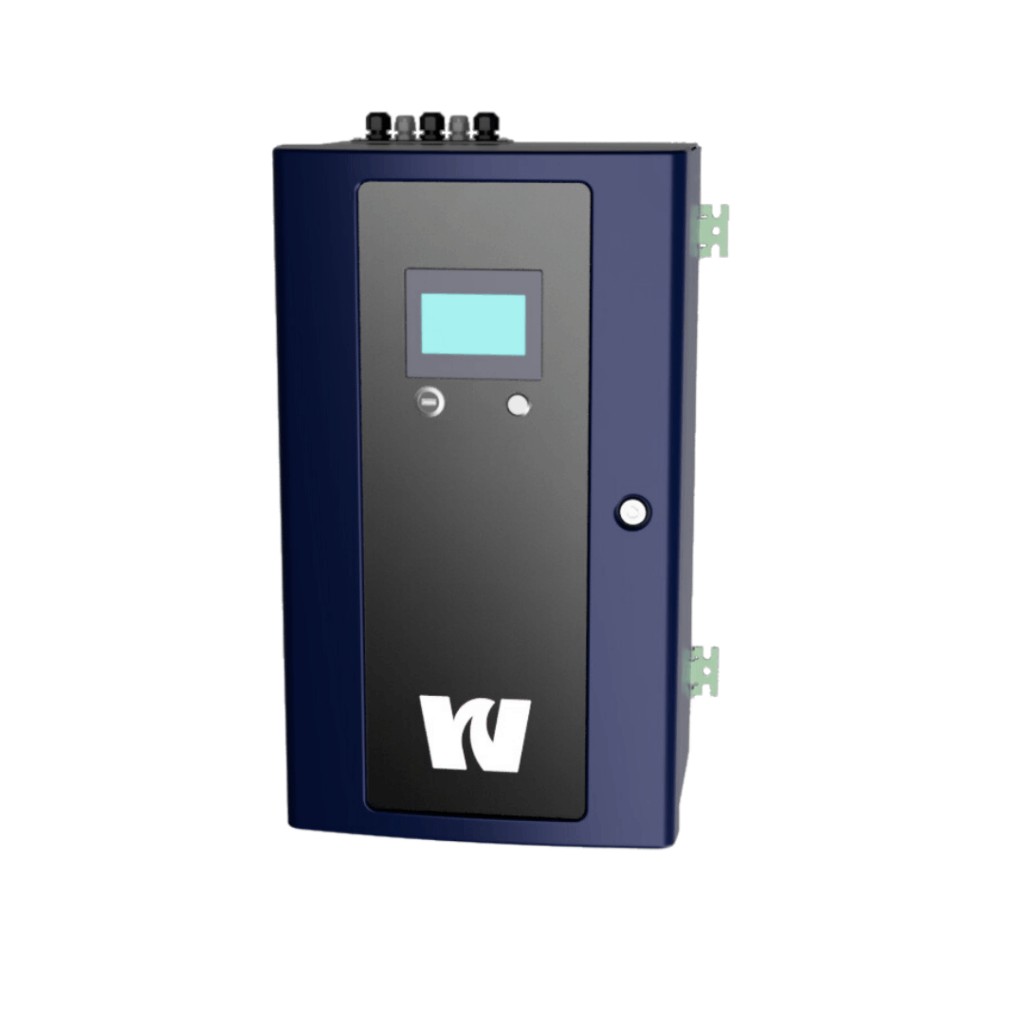

The Waltron 3146 Ammonia Analyzer is specifically designed for the online analysis of ammonia used for pH control in high purity process water. The 3146 delivers accurate and reliable ammonia readings with straightforward maintenance and a low total cost of ownership. Common applications include boiler cycle water and condensate return systems.

Features

• Measuring range: 0-1000ppb
• Accuracy: ±2% of full scale
• Supports 1 to 2 sample streams
• 4-20mA (galvanic isolator option) or 0-5V analog outputs
• 2 or 4 configurable alarms
• Ambient operating temperature: 50 to 113°F
• Sample flow: 100–500 ml/min at atmospheric pressure
• Power supply: 110-220VAC
• IP65/NEMA4X rated enclosure
• Corrosion-resistant stainless steel construction
• Grab sample measurement capability
• Internal datalogger with easy-access USB port on the enclosure door
