The ABB F204A-25/0.03 (order number 2CSF204101R1250) is a 4-pole Residual Current Circuit Breaker (RCCB) from the ABB F200 series, designed for DIN rail mounting according to EN 60715 (35mm rail). This Type A RCCB provides comprehensive earth fault protection for people, equipment, and installations against the dangers of fault currents leaking to earth, while also offering protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530.

Protection Principle and Sensitivity: The RCCB continuously monitors the vector sum of currents flowing through the live conductors. Under normal conditions, the sum is zero. When an earth fault occurs, a portion of current flows to ground, creating an imbalance that the device detects. The F204A-25/0.03 features a rated residual current of 30 mA (I∆n), a sensitivity level widely recognized as providing additional protection against direct contact with live parts. This level offers an optimal balance between safety and nuisance tripping prevention, making it suitable for general-purpose socket outlets, portable equipment, and wet area circuits.

Type A Tripping Characteristic: The Type A designation indicates that this RCCB can detect both sinusoidal AC fault currents (typical of conventional resistive and inductive loads) and pulsating DC fault currents up to 6 mA smooth DC component. This broader detection capability is essential for modern electrical installations where electronic equipment, switch-mode power supplies, variable frequency drives, rectifiers, UPS systems, battery chargers, and appliances with power electronics can produce non-sinusoidal leakage currents with DC components. Unlike AC-only devices which may not respond reliably to such fault currents, the Type A characteristic ensures continued protection in mixed-technology environments.

Electrical Specifications: The F204A-25/0.03 is rated for 25 A continuous current at 240/415 V AC (four-pole configuration) and 240 V AC for double-pole operation. The UT test button operates reliably across a voltage range of 100 V AC to 240 V AC. For UL/CSA applications, the maximum operating voltage is 480Y/277 V AC. The device achieves a rated impulse withstand voltage of 4 kV and an insulation voltage of 500 V. Power loss under rated operating conditions is only 1.3 W, contributing to energy efficiency and minimizing heat buildup in distribution boards.

Short-Circuit and Surge Performance: The RCCB is rated for a short-circuit withstand capacity of 10 kA when protected by a gG 100 A fuse or an appropriately rated miniature circuit breaker upstream. The surge current strength is specified at 250 A (8/20 µs pulse waveform), providing excellent immunity against short-duration leakage current peaks that might otherwise cause nuisance tripping. The maximum surge current withstand capability of 5 kA further demonstrates the device's robustness in environments where transient overvoltages are present.

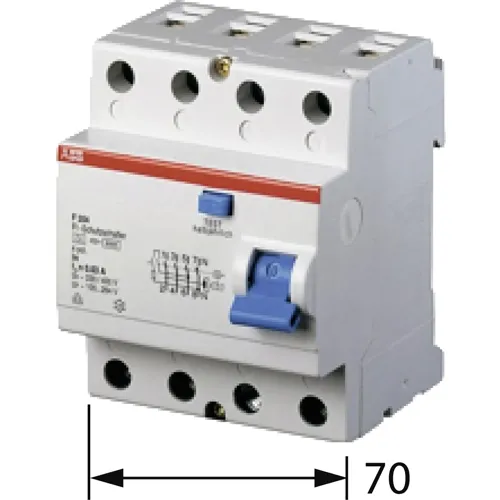

Mechanical Design and Dimensions: The F204A-25/0.03 features a compact form factor measuring 70 mm in width, 85 mm in height, and 69 mm in mounting depth. The 4-pole configuration occupies four standard modular widths (1 module = 17.5 mm) and is designed for easy snap-on mounting to 35 mm top-hat DIN rails. The neutral terminal is positioned on the right side of the device, facilitating logical wiring arrangements in distribution boards. The device weighs approximately 360 g. Terminal protection is rated IP20 for finger-safe installation, while the overall housing achieves IP40 protection against solid foreign objects.

Termination and Wiring: The screw clamp terminals accommodate conductors up to 25 mm² for both rigid and flexible copper cables. Busbar connection capacity is 10 mm². The recommended wire stripping length is 12 mm, and the tightening torque specification is 2.8 N·m using an appropriate screwdriver. The terminals are designed to accept both single-wire and fine-stranded conductors, with the captive screws preventing accidental loss during installation. The arbitrary power supply connection allows either top or bottom feed configurations, providing flexibility in panel layout.

Durability and Reliability: The F204A-25/0.03 is engineered for long service life in demanding applications. Mechanical endurance is rated at 20,000 operating cycles, while electrical endurance is 10,000 cycles. These ratings ensure reliable performance over the product's lifetime, even in applications requiring frequent manual testing or automatic operation. The instantaneous operating characteristic ensures rapid response to fault conditions, minimizing let-through energy and reducing the risk of equipment damage or personal injury.

Environmental and Compliance: The device operates reliably across a wide ambient temperature range from -25°C to +55°C. It complies with RoHS regulations (RoHS 2011/65/EU) and is certified SVHC free (Substances of Very High Concern) under REACH. The product conforms to multiple international standards including DIN VDE 0664 Part 1, DIN VDE 0664 Part 11, and EN 61008-2-1. UL and CSA recognitions further extend its suitability for global installations. Country of origin is Italy, with customs tariff number 85363030. The EAN for the product is 8012542783404.

Application Scenarios: The F204A-25/0.03 is ideally suited for a wide range of applications requiring Type A earth fault protection. These include residential distribution boards and consumer units, commercial building electrical panels, industrial control systems and machine circuits, socket outlet circuits requiring 30 mA protection, wet area installations (bathrooms, kitchens, outdoor areas), circuits supplying portable equipment, data centers and IT equipment rooms, medical facilities, educational institutions, hospitality venues, and renewable energy installations. The 4-pole configuration is particularly suitable for three-phase systems where neutral conductor protection is required.

Accessories and Compatibility: The F204A-25/0.03 is compatible with the full range of F200 series accessories. Signal contacts and auxiliary switches (S2C-S/H6R type) with changeover contacts can be mounted on the right side of the device, with a maximum of three auxiliary units installable in sequence. These accessories provide remote indication of RCCB status, enabling integration with building management systems, remote monitoring panels, and alarm systems. The device is also compatible with comb-type busbars for efficient multi-pole power distribution and panel space optimization.

Selection Considerations: When selecting an RCCB for a specific application, the 25 A rated current makes the F204A-25/0.03 suitable for circuits with expected normal load currents up to 25 A. The 30 mA residual current sensitivity provides additional protection against direct contact, making this device appropriate for general-purpose socket outlets, lighting circuits in wet areas, and circuits supplying hand-held equipment. The Type A characteristic should be selected when the protected circuit contains electronic equipment with rectifiers, power supplies, or variable speed drives that may produce pulsating DC leakage currents. For installations where no such equipment is present, an AC Type RCCB may be sufficient. For applications requiring selectivity, selective (S-type) versions of the F200 series are available with time-delayed tripping characteristics.
