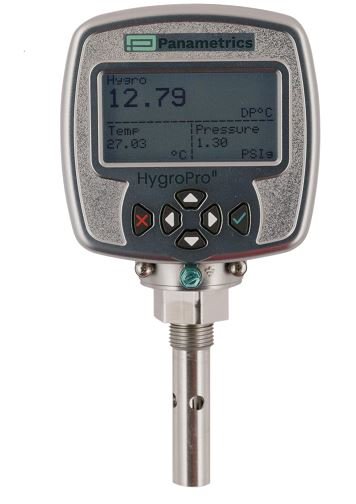

The Panametrics HygroPro II moisture transmitter is an intrinsically safe, compact, loop-powered display transmitter designed to meet the requirements of industrial and hydrocarbon processing applications. The HygroPro II can measure moisture in both gases and hydrocarbon liquids, providing a 4-20mA output along with HART digital communication capability, utilizing Panametrics' latest -FX aluminum oxide moisture sensor.

The backlit display with 6-button keypad allows viewing of up to three parameters simultaneously and enables easy navigation of the software for configuration of probe measurement, analog and digital (HART) output, and other functions and diagnostics. Built-in networking capability through the digital HART interface allows multiple units to be connected on a single network.

The HygroPro II utilizes an aluminum oxide moisture sensor, a built-in thermistor, and optional pressure transducer to provide real-time measurement of sample dew/frost point, temperature, and pressure. This allows calculation of other moisture content parameters such as ppmv in gases, liquids, and pounds per million standard cubic feet in natural gas or percent relative humidity. The glass-to-metal seal in the probe mount is certified to meet ANSL/UL 122701 single seal standards, ensuring reliable isolation and protection of probe electronics.

The HygroPro II consists of a display/keypad housing and a replaceable transducer element (RTE) containing the aluminum oxide moisture sensor, thermistor, and optional pressure transducer with associated electronics. The RTE is field replaceable by loosening mounting screws and disconnecting an internal cable.

Key Features

• Intrinsically safe design
• Measures moisture in gases and hydrocarbon liquids
• Dew/frost point calibration ranges: 10 to -80°C (data to -110°C)
• Accuracy: ±2°C above -100°C, ±3°C below -100°C
• Repeatability: ±0.2°C above -100°C, ±0.5°C below -100°C
• Operating temperature: -20 to 60°C
• Pressure ranges up to 5000 psig (345 bar)
• 4-20mA analog and HART digital output
• Backlit display with 6-button keypad
• Field replaceable transducer element (RTE)
• Multiple units can be networked via HART

Applications

• Petrochemical processing
• Natural gas moisture monitoring
• Industrial gas production
• Semiconductor manufacturing
• Furnace gas/heat treating
• Power generation
• Air dryer systems
• Pharmaceutical manufacturing
• Aerospace applications
