Product Specifications
Manufacturer: QUADRIOS
Part Number: 23CW026
Product Type: PVC-stranded wires kit with precision cutting pliers
Cable Cross-section: 0.14 mm²
Cable Structure: 18 x 0.1 mm
Outer Diameter: 1.2 mm
Rated Voltage: 230 V
Temperature Range: -30°C to 70°C
Halogen Free: Yes
Number of Colours: 2 (black, red)
Total Length: 100 m (2 x 50 m)
Stripping Range: 0.75 - 6 mm² (AWG 20-10)
Pliers Weight: approx. 113 g
Product Description
Most wire kits give you wire. Some give you a plastic case. This one gives you two 50-metre spools of high-purity stranded copper wire and a pair of pliers that actually cuts and strips — in the same package, for roughly the same price you would pay for the wire alone elsewhere.
What You Actually Get

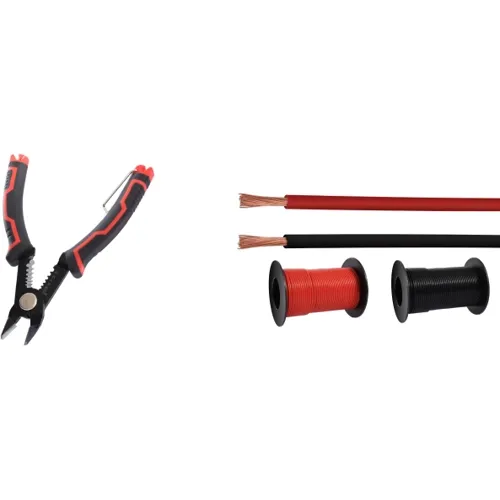

Inside the bag: one 50-metre spool of red 0.14 mm² LIY copper wire, one 50-metre spool of black 0.14 mm² LIY copper wire, and a precision side cutter with integrated stripping function. The wire is the same high-quality stuff you would buy separately — 18 strands of 0.1 mm bright annealed copper, PVC insulated, halogen-free, rated for 230 V and temperatures from -30°C to 70°C. The pliers are not an afterthought; they are a genuinely useful tool with a blade length of approximately 14 mm, a blunt tip for manoeuvring on circuit boards, and six stripping notches covering cross-sections from 0.75 to 6 mm² (AWG 20 to 10).
The Wire
At 0.14 mm², this is signal and control wire, not power distribution. It is perfect for breadboard jumpers, soldered prototype connections, internal wiring of small devices, sensor cables, and any low-current application where flexibility matters. The 18 x 0.1 mm stranding makes it far more pliable than solid-core wire of the same gauge — you can route it through tight spaces, wrap it around terminal screws, and bend it repeatedly without work-hardening and snapping. The PVC jacket strips cleanly without nicking the copper, and the high-purity copper takes solder readily without excessive flux or heat.
The Pliers

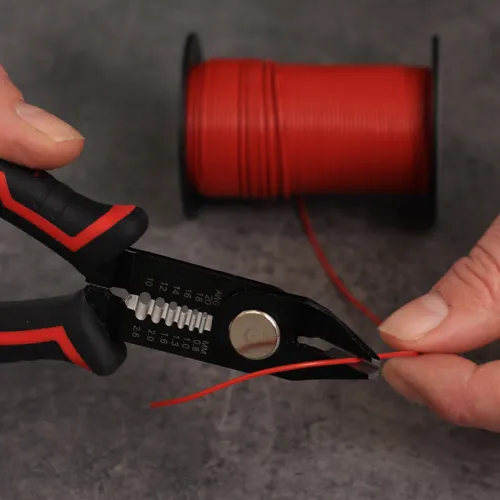

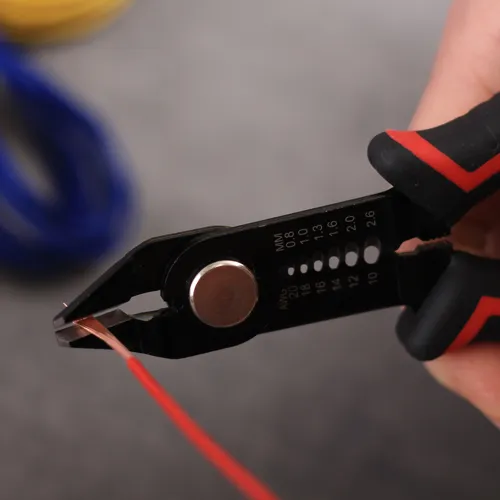

The included side cutter is not a cheap giveaway tool. It has a sharp, durable blade designed for fine work, with a blunt tip that improves manoeuvrability on populated circuit boards and in hard-to-reach areas. The six stripping notches are machined into the blade, sized for common cross-sections from 0.75 mm² (thin solid wire for small signal work) up to 6 mm² (thicker wire for mains connections). You pull the wire through the appropriate notch, squeeze, and the insulation comes off cleanly without damaging the conductor. The ergonomic handle fits comfortably in the hand, the locking bar keeps the pliers compact when stored, and the spring mechanism is discreetly integrated into the joint. Total weight is only 113 grams — light enough to keep in a toolbox without noticing it, robust enough to handle daily use.
Numbers That Matter
Manufacturer part number: 23CW026. EAN: 4260732283690. Bürklin Elektronik order number: 92F864. Country of origin: China. Customs tariff number: 85444995. RoHS conform (date of RoHS guidelines: March 31, 2015). SVHC free.
Where You Will Use It
This kit belongs on an electronics workbench, in a prototyping lab, or in the bag of anyone who builds small circuits regularly. The two most common wire colours (red for positive, black for ground or signal) cover the majority of DC wiring tasks. 50 metres of each colour is enough for dozens of projects — breadboard experiments, soldered PCB prototypes, internal wiring of enclosures, sensor connections, model railway layouts, RC vehicle wiring, and educational lab exercises. The included pliers mean you do not need to hunt for a separate wire stripper every time you start a project; the tool is right there in the kit.
The Practical Upside
Buying 100 metres of quality stranded wire (50 m red + 50 m black) from a reputable brand typically costs more than this entire kit. Adding a decent pair of stripping pliers would push the total significantly higher. QUADRIOS has bundled the two together at a price that makes the pliers essentially free. For anyone setting up a new workbench or replenishing supplies, that is a rare deal — you get the wire you need and a tool you will use, all in one box, with no compromise on quality.
Resources & Documentation
Two Spools of Wire and a Pair of Pliers That Actually Strip – QUADRIOS 23CW026 Kit
Product Specifications
Manufacturer: QUADRIOS
Part Number: 23CW026
Product Type: PVC-stranded wires kit with precision cutting pliers
Cable Cross-section: 0.14 mm²
Cable Structure: 18 x 0.1 mm
Outer Diameter: 1.2 mm
Rated Voltage: 230 V
Temperature Range: -30°C to 70°C
Halogen Free: Yes
Number of Colours: 2 (black, red)
Total Length: 100 m (2 x 50 m)
Stripping Range: 0.75 - 6 mm² (AWG 20-10)
Pliers Weight: approx. 113 g
