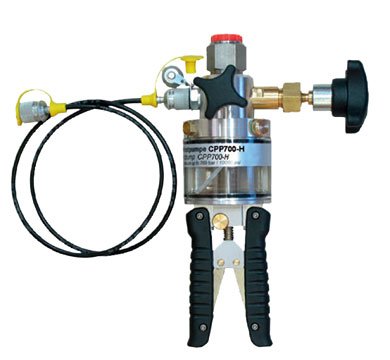

The WIKA CPP700 is a hydraulic hand pump designed for generating test pressure to calibrate mechanical and electronic pressure measuring instruments through comparative measurements. It is suitable for laboratory, workshop, or on-site use at the measuring point.

When the device under test and a reference instrument are connected, actuating the pump applies the same pressure to both. Calibration or adjustment is performed by comparing readings at any desired pressure value.

The pump features an integrated fine-adjustment valve for precise pressure setting and a 200 cm³ fluid reservoir. Media options include mineral oil or distilled water (water-based hydraulic fluids are not suitable). The freely rotating G1/2 female pressure connection simplifies instrument attachment.

Standard delivery includes a 1-meter Minimess® 1620 test hose and G1/4 female bulkhead connector. Construction materials include anodized aluminum, brass, stainless steel, and ABS with FKM and NBR seals. The pump is approved to EAC and MTSCHS standards.

Features

• Pressure range: 0 to 10,000 psi (0 to 700 bar)
• Fine-adjustment valve for precise pressure control
• 200 cm³ fluid reservoir
• Media: mineral oil or distilled water
• G1/2 female freely rotating pressure connection
• Includes 1m Minimess® 1620 test hose and G1/4 adapter
• Materials: anodized aluminum, brass, stainless steel, ABS
• FKM and NBR seals
• EAC and MTSCHS approved
• Ergonomic, portable design
