Product Specifications
Manufacturer : Dwyer Instruments
Model Number : GSTA / GSTC
Type : Gas Transmitter
Gases Detected : CO (0-50 to 0-500 ppm selectable) or NO₂ (0-10 ppm)
Outputs : GSTA: 4-20mA, 0-5 VDC, 0-10 VDC; GSTC: BACnet or Modbus over RS-485
Sensor Life : 4 years typical
Coverage Area : 5,000 to 7,500 sq ft
Documents: Product Specs
Product Description

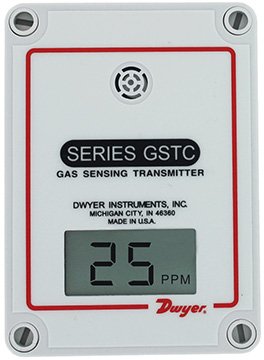

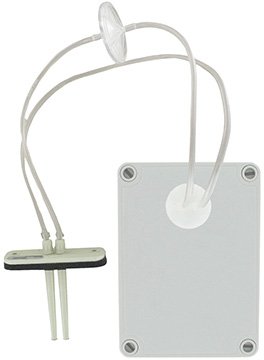

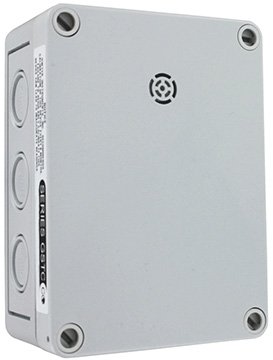

Dwyer GSTA and GSTC gas transmitters monitor CO (gasoline engines) and NO₂ (diesel engines) in parking garages and loading docks. Field replaceable electrochemical sensors with 4-year typical life and 5,000-7,500 sq ft coverage.
GSTA models: field selectable analog outputs with invertible output via dip switch. CO ranges configurable from 0-50 to 0-500 ppm; NO₂ standard 0-10 ppm. GSTC models: BACnet or Modbus over RS-485 for building management controller integration. A-449 remote LCD display (sold separately) enables field calibration. CO accuracy: 2% full-scale; NO₂ accuracy: 3% full-scale. End-of-life indication when sensor replacement needed.
