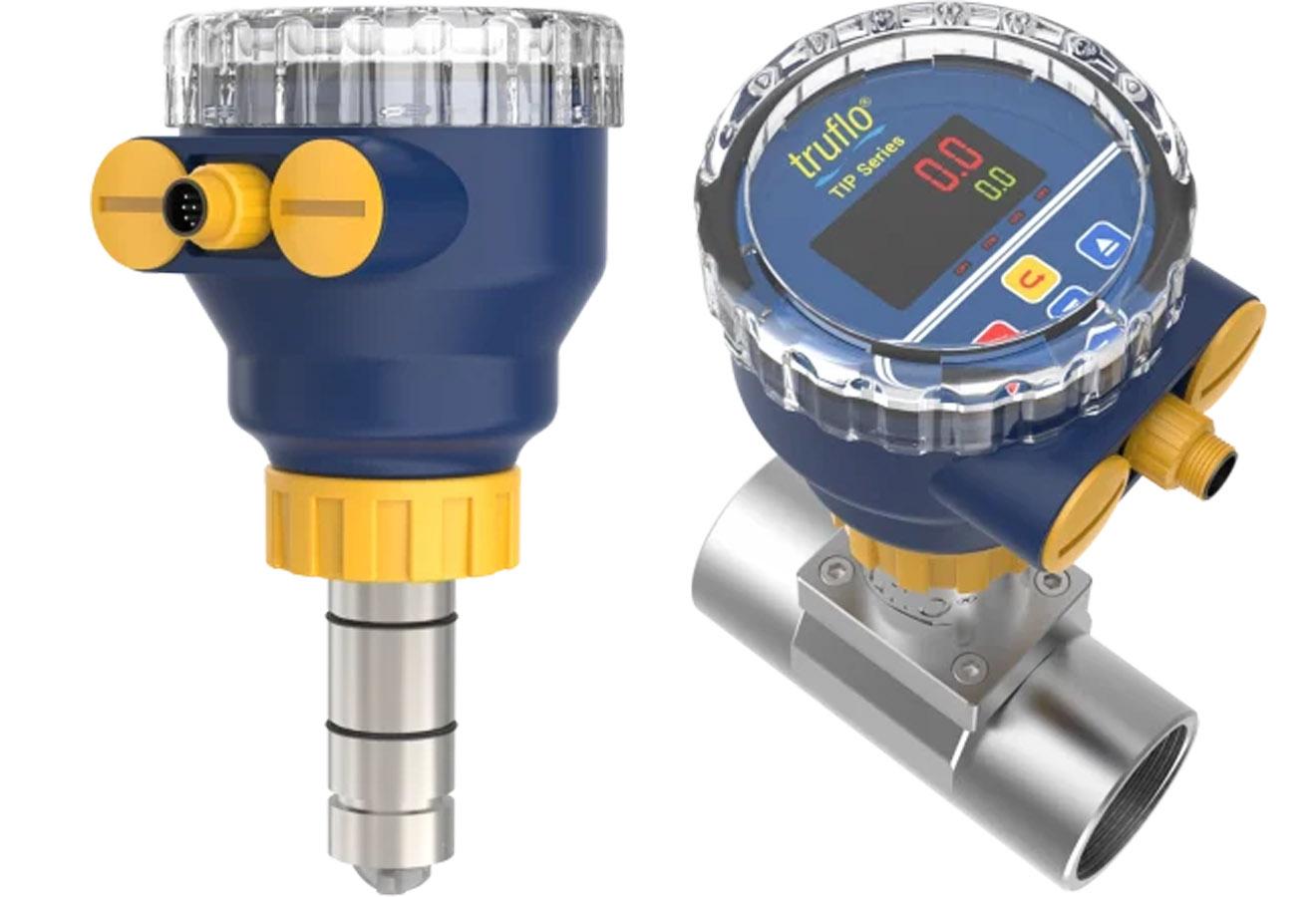

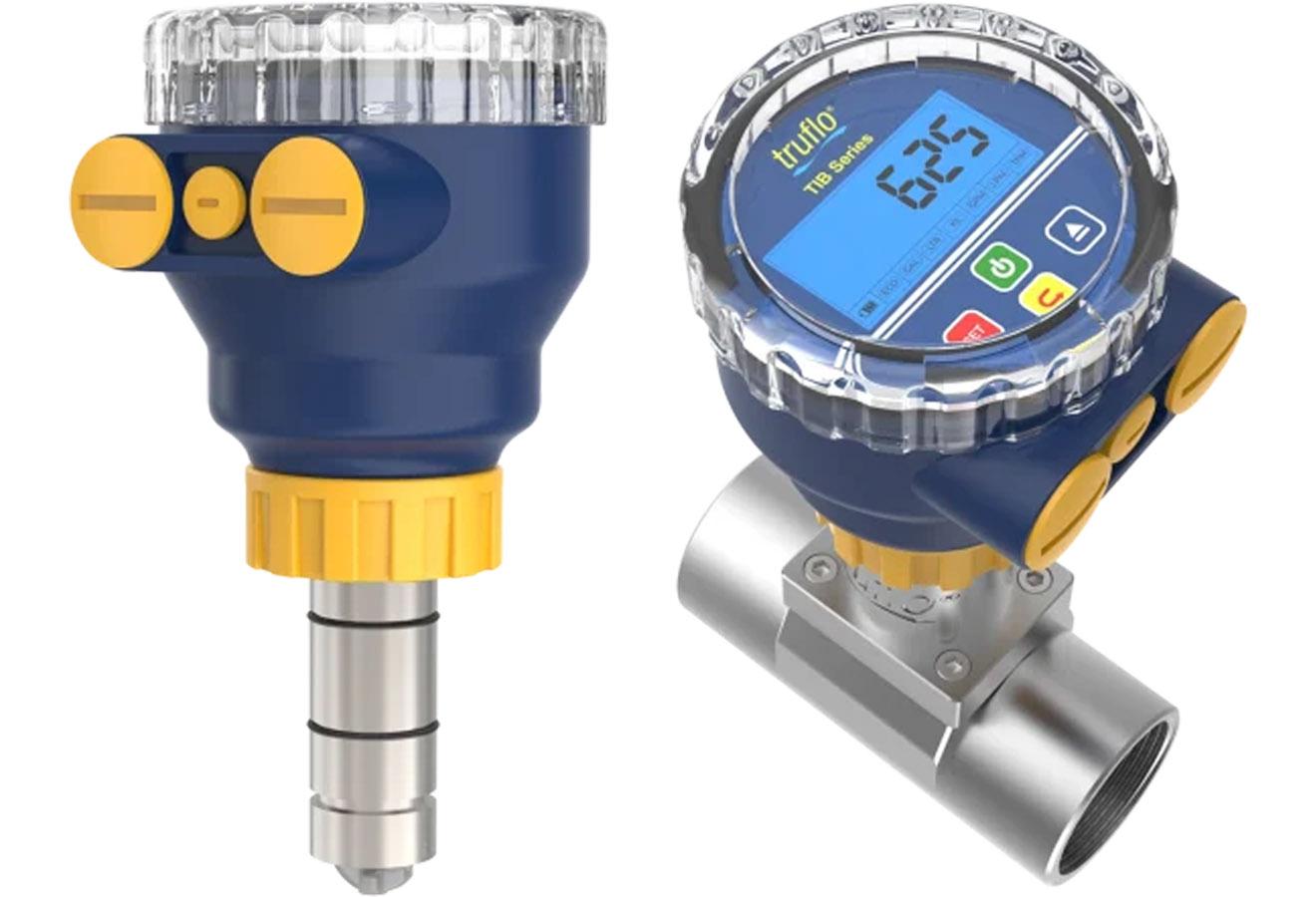

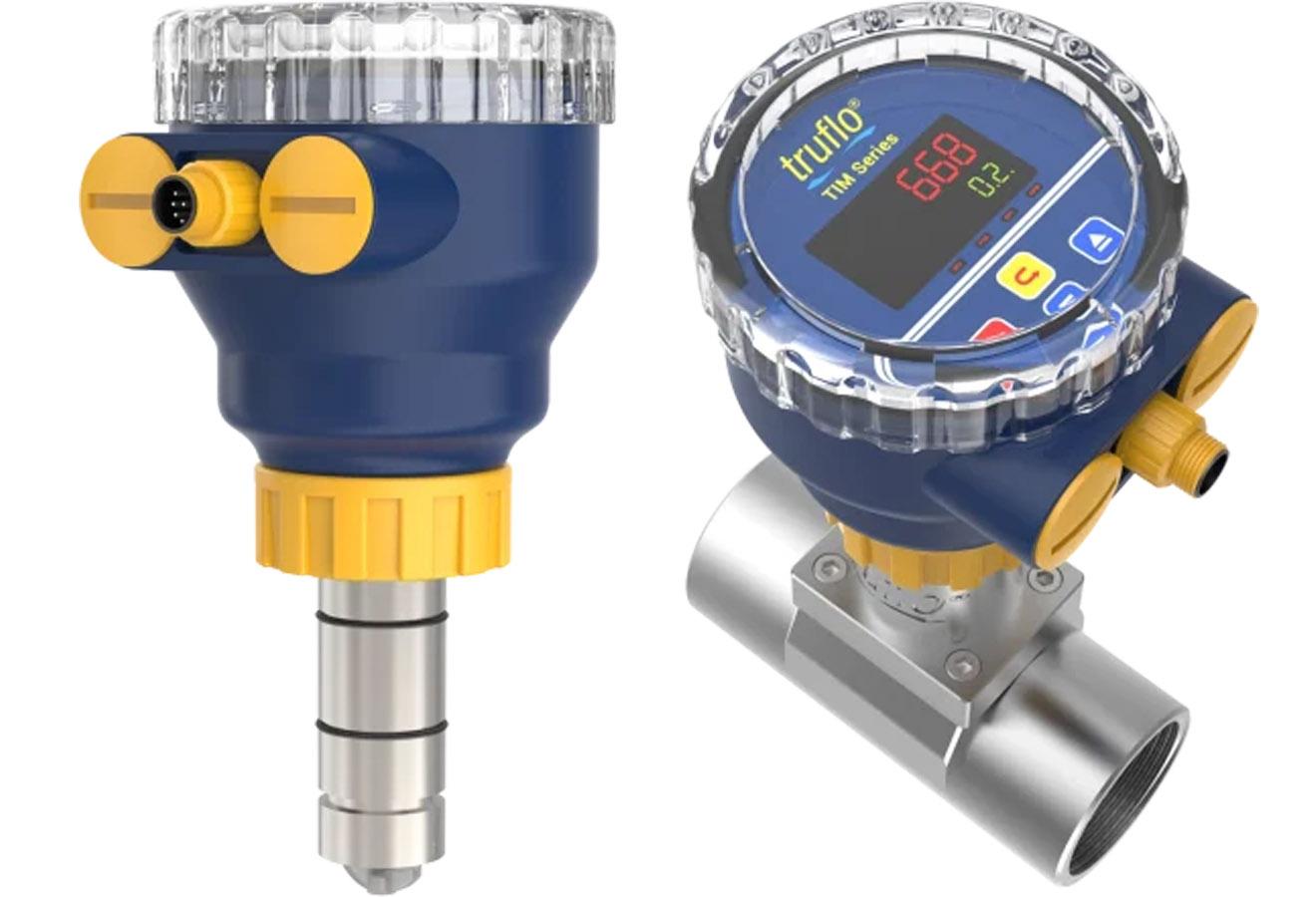

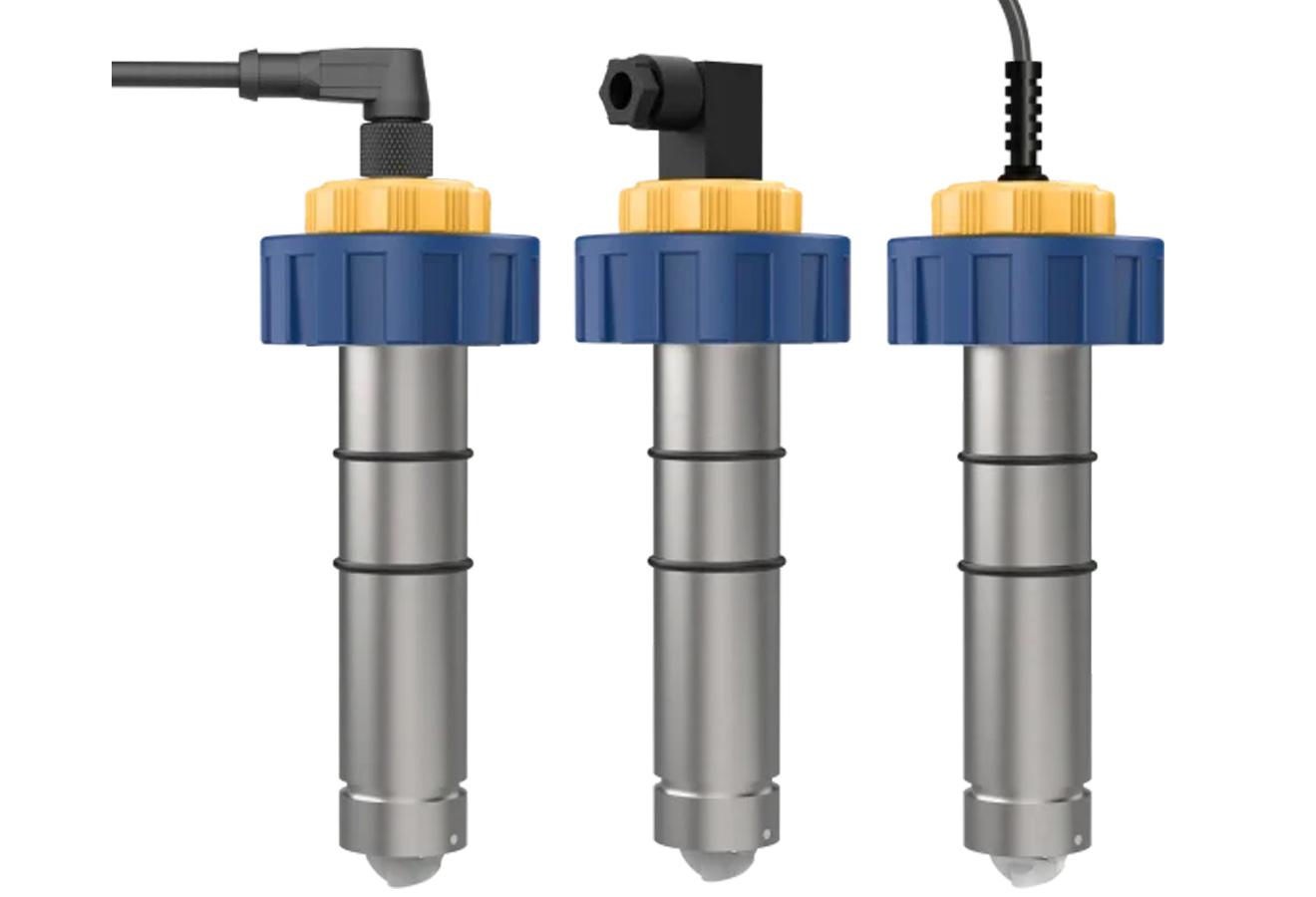

The ICON Truflo TI3 Series Paddle Wheel Flow Meters are easy to install with exceptional long life performance. The Truflo TI3 Series Paddle Wheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The TI3 Series has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 10 m/s (0.3 to 33 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems.

Accuracy is ±0.50% with 316 SS construction. Available in two size ranges: 1/2 to 4 inches and 6 to 24 inches. Features include double O-ring seal, zirconium ceramic rotor pin and bearings, retrofits into Signet fittings, rotatable display, password protected security, and a lifetime warranty on the paddle wheel assembly.

Applications include liquid chemical flow measurement, filtration systems, water & wastewater monitoring, industrial chemical distribution, process chemical skids, liquid consumption, and discharge verification.
