There are times when a single roll of wire in one color is exactly what you need. But more often, especially on a workbench or inside a control panel, you reach for a second color. Then a third. The QUADRIOS 22CW001 simply gives you ten colors in one bag, so you stop searching and start wiring.

What You Actually Get

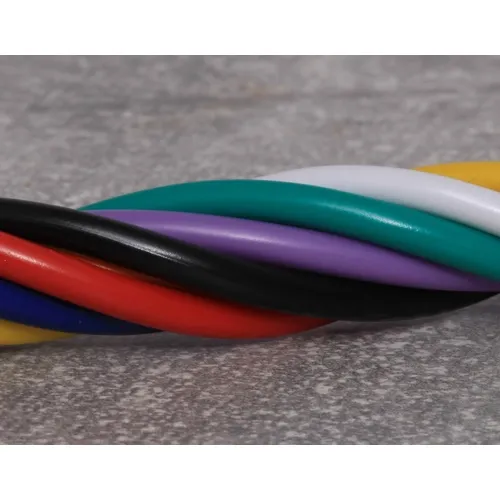

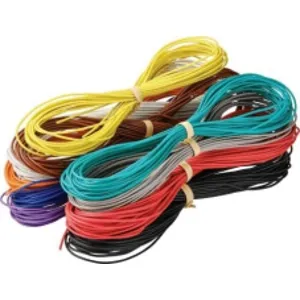

Inside the bag are ten individually colored wires, each made from 18 strands of 0.1 mm copper twisted together to form a flexible 0.14 mm² conductor. The colors are black, white, red, blue, brown, gray, green, yellow, orange, and purple. That covers everything from basic power distribution (brown and blue) to signal wiring (yellow, white, purple) and grounding identification (green and yellow). No single-color roll can match that versatility when you are building a circuit that needs ten distinct signals.

The Wire Itself

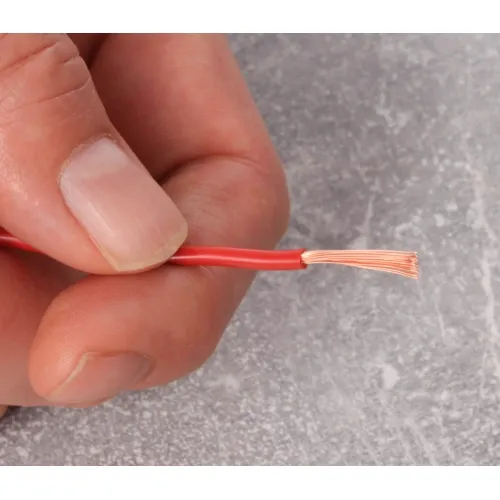

The conductor is bright annealed copper — the standard for good solderability and low resistance in this gauge. The 18 x 0.1 mm stranding gives it flexibility far beyond what solid 0.14 mm² wire would offer. You can route it around corners, through cable ducts, and into tight terminal blocks without fighting against springback. The PVC insulation measures 1.2 mm outer diameter and strips cleanly with standard wire strippers, leaving the copper strands intact rather than nicking them. Rated voltage is 230 V, suitable for low-voltage control circuits, sensor wiring, and internal equipment connections.

Why Halogen-Free Matters
This particular kit carries a halogen-free designation. In normal use, you will not notice the difference. But in the event of a fire, PVC insulation without halogen additives produces less corrosive and toxic smoke. For equipment that goes into public buildings, transportation systems, or any environment where smoke toxicity is a concern, halogen-free wire is increasingly a requirement rather than a nice-to-have. The temperature range spans -30°C to 70°C, giving you usable performance from freezing outdoor enclosures to warm indoor control cabinets.

What This Kit Is Not
At 0.14 mm², this wire is not for high-current power distribution. It is for signal wiring, small control circuits, sensor connections, and internal device wiring where current demands stay low. If you need to carry 10 amps, step up to a thicker gauge. But for the majority of electronics workbench tasks, prototype builds, and low-voltage control panels, 0.14 mm² is exactly the right size — thin enough to fit multiple wires into a small terminal block but thick enough to handle a few hundred milliamps reliably.

Where You Will Use It
Typical applications include internal wiring of industrial control panels, prototyping and breadboard projects, electronics laboratory workstations, hobbyist and maker projects, model building and RC equipment wiring, sensor and signal cabling, small-scale production wiring harnesses, educational training environments, and repair of low-voltage electronic equipment. The ten-color assortment means you can color-code your entire circuit — power, ground, signals, and feedback loops — without compromising on wire quality or paying for ten separate rolls.

The Practical Upside
A bag of ten colors costs more than a single roll. That is obvious. But a single roll forces you to use the same color for everything, which makes debugging a nightmare. The 22CW001 kit costs roughly what two or three individual rolls would cost, but it gives you ten distinct colors. For anyone who has spent an hour tracing a miswired signal because all the wires looked the same, that trade-off makes perfect sense.
