Product Specifications
Manufacturer: Amprobe
Product Number: ACD-14 TRMS-PLUS
Product Type: True RMS Clamp Multimeter
Core Application: HVAC Testing, Commercial & Industrial Electrical Work
Clamp Jaw Capacity: Accommodates conductors up to 28 mm (1.1") in diameter
Display: Dual 3-3/4 digit, 4000 count LCDs, Simultaneous Amperage & Voltage Readout
Voltage Measuring Range: AC & DC Voltage up to 600 V
Current Measuring Range: AC Current up to 600 A; DC & AC Micro-Amperage up to 2000 µA
Additional Measurement Functions: Resistance up to 40.00 MΩ, Capacitance up to 3000 µF, Frequency up to 600 Hz, Temperature from -4°F to 999°F (Type-K Thermocouple)
Core Features: True RMS Measurement, Continuity Buzzer, Diode Test, Data Hold, Maximum Reading Function, Inrush Current Measurement, Auto Power-Off, Low Battery Indication, Auto Ranging
Housing: Rubber Over-Molded Case
Standard Accessories: Test Leads, Carrying Case, Bead-Type Thermocouple with Banana Plug, Product Manual
Documents: Product Manual , Product Specs
Product Description
The Amprobe ACD-14 TRMS-PLUS clamp multimeter with dual display is the professional's choice for both HVAC and electrical applications due to its complete set of measuring features. Thin jaws allow access to tight measurement areas while still accommodating conductors up to 28 mm. The ACD-14 TRMS-PLUS's dual displays allow for viewing amperage and voltage simultaneously. True RMS functionality enables accurate readings in noisy electrical environments.
The Amprobe ACD-14 TRMS-PLUS clamp multimeter measures AC & DC voltage to 600 V, AC current to 600 A, capacitance to 3000 µF, Ohms to 40.00 MΩ, frequency to 600 Hz, and temperature from -4°F to 999°F with a Type-K thermocouple probe. This Amprobe multimeter also measures DC & AC micro-amperage in the 400.0 µA and 2000 µA ranges. Other features of the ACD-14 TRMS-PLUS include continuity buzzer, diode test, Hold and Maximum reading functions, auto power-off, and low battery indication.
The Amprobe ACD-14 TRMS-PLUS clamp multimeter ships complete with:
- Test leads
- Carrying case
- Bead-type thermocouple with banana plug
- Product manual
Amprobe ACD-14 TRMS PLUS Clamp Multimeter Specifications
| Feature | Range | Accuracy |
|---|---|---|
| DC Voltage | ||
| 400.0 mV | ±(0.3% rdg + 4 dgt) | |
| 4.000 V, 40.00 V, 400.0 V | ±(0.5% rdg + 3 dgt) | |
| 600.0 V | ±(1.0% rdg + 4 dgt) | |
| NMRR: | >50 dB @ 50/60 Hz | |
| CMRR: | >120 dB @ DC to 60 Hz, Rs=1kΩ | |
| Input impedance: | 10 MΩ, 30 pF nominal (1000 MΩ for 400.0 mV range) | |
| AC Voltage (50 Hz ~ 500 Hz) Average sensing | ||
| 4.000 V, 40.00 V, 400.0 V | ±(1.5% rdg + 5 dgt) | |
| 600.0 V | ±(2.0% rdg + 5 dgt) | |
| CMRR: | >60 dB @ DC to 60 Hz, Rs=1kΩ | |
| Input impedance: | 10 MΩ, 30 pF nominal | |
| AC Current (Clamp-on 50/60 Hz) | ||
| 40.00 A | ±(1.5% rdg + 8 dgt) | |
| 400.0 A | ±(1.5% rdg + 8 dgt) | |
| 600.0 A | ±(1.5% rdg + 8 dgt) | |
| Max/Hold (AC current only) | Specified accuracy ± 50 digits for changes > 25 ms in duration | |
| Ohms | ||
| 400.0 Ω | ±(0.8% rdg + 8 dgt) | |
| 4.000 kΩ, 40.00 kΩ, 400.0 kΩ | ±(0.6% rdg + 4 dgt) | |
| 4.000 MΩ | ±(1.0% rdg + 4 dgt) | |
| 40.00 MΩ | ±(2.0% rdg + 4 dgt) | |
| Open circuit voltage | 0.4 VDC typical | |
| Audible continuity tester | Audible threshold: between 10 Ω and 120 Ω | |
| Capacitance | ||
| 500.0 nF, 5.000 µF, 50.00 µF, | ||
| 500.0 µF, 3000 µF* | ±(3.5% rdg + 6 dgt)*** | |
| *Additional 50.00 nF range accuracy is not specified | ||
| **Accuracies with film capacitor or better | ||
| ***Specified with battery voltage above 2.8 V (approximately half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4 V | ||
| DC µA | ||
| Range | Accuracy | Burden Voltage |
| 400.0 µA | ±(2.0% rdg + 4 dgt) | 2.8 mV/µA |
| 2000.0 µA | ±(1.5% rdg + 3 dgt) | 2.8 mV/µA |
| AC µA (50 Hz ~ 500 Hz) | ||
| 400.0 µA | ±(2.0% rdg + 5 dgt) | 2.8 mV/µA |
| 2000.0 µA | ±(1.5% rdg + 5 dgt) | 2.8 mV/µA |
| Frequency | ||
| Volts | Range/Sensitivity | Accuracy |
| 400.0 mV | 10 Hz to 2 kHz/300 mV | ±(0.5% rdg + 4 dgt) |
| 4.000 V | 5 Hz to 40 kHz/4 V | ±(0.5% rdg + 4 dgt) |
| 40.00 V | 5 Hz to 100 kHz/28 V | ±(0.5% rdg + 4 dgt) |
| 400.0 V | 5 Hz to 100 kHz/100 V | ±(0.5% rdg + 4 dgt) |
| 600 V | 5 Hz to 5 kHz/500 V | ±(0.5% rdg + 4 dgt) |
| Diode Tester | ||
| Open circuit voltage | Test current typical | |
| < 1.6 VDC | 0.25 mA | |
| Temperature (Type-K Thermocouple) | ||
| -20°C to 300°C | ±(2% rdg + 3°C) | |
| 301°C ~ 537°C | ±(3% rdg + 3°C) | |
| -4°F to 572°F | ±(2% rdg + 6°F) | |
| 573°F ~ 999°F | ±(3% rdg + 6°F) | |
Features
- True RMS measurement for accurate readings in noisy environments
- Dual displays for simultaneous reading of amperage & voltage
- AC & DC voltage measurement up to 600 V
- AC current measurement up to 600 A
- Resistance, Capacitance & Frequency measurement
- Temperature measurement with included Type-K Thermocouple probe
- Thin jaws to access tight measurement spaces
- Micro amp measurement for testing flame sensors
- Dual 3-3/4 digit, 4000 count LCDs
- Diode test & audible continuity buzzer
- Hold and Maximum reading functions
- Inrush current measurement
- Accommodates conductors up to 28 mm (1.1”) in diameter
- Auto ranging measurement
- Rubber over-molded case for durability

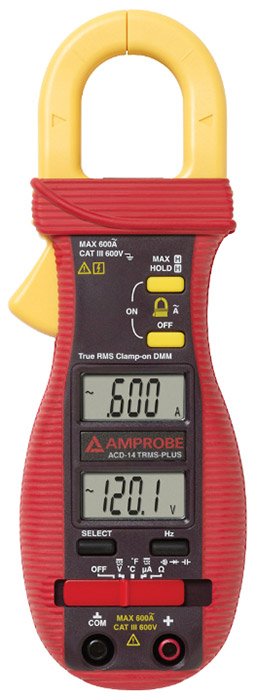

Amprobe ACD-14 TRMS-PLUS Clamp Multimeter | Dual Display HVAC Electrical Tester
Product Specifications
Manufacturer: Amprobe
Product Number: ACD-14 TRMS-PLUS
Product Type: True RMS Clamp Multimeter
Core Application: HVAC Testing, Commercial & Industrial Electrical Work
Clamp Jaw Capacity: Accommodates conductors up to 28 mm (1.1") in diameter
Display: Dual 3-3/4 digit, 4000 count LCDs, Simultaneous Amperage & Voltage Readout
Voltage Measuring Range: AC & DC Voltage up to 600 V
Current Measuring Range: AC Current up to 600 A; DC & AC Micro-Amperage up to 2000 µA
Additional Measurement Functions: Resistance up to 40.00 MΩ, Capacitance up to 3000 µF, Frequency up to 600 Hz, Temperature from -4°F to 999°F (Type-K Thermocouple)
Core Features: True RMS Measurement, Continuity Buzzer, Diode Test, Data Hold, Maximum Reading Function, Inrush Current Measurement, Auto Power-Off, Low Battery Indication, Auto Ranging
Housing: Rubber Over-Molded Case
Standard Accessories: Test Leads, Carrying Case, Bead-Type Thermocouple with Banana Plug, Product Manual
Documents: Product Manual , Product Specs
