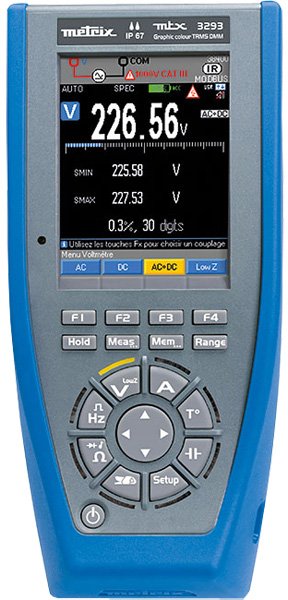

The AEMC MTX 3293 is a portable multimeter that incorporates an easy to read 320 x 240 pixel graphical color display and 4-line, 100,000 count readout allowing instantaneous viewing of data and trends when making direct measurements of electrical quantities. The MTX 3293 utilizes an innovative design that makes them compact, rugged, comfortable to grip and leakproof to IP67 standard.

The AEMC MTX 3293 makes True RMS measurements to 1000V AC/DC/AC+DC providing a basic accuracy of ±0.02%. The unit also accurately measures current, resistance, frequency, and capacitance. The MTX 3293 is diode test capable and includes an audible continuity alarm. A clamp function is available for direct current readings and temperature measurements are possible with optional PT100/PT1000 sensors or Type K or J thermocouples.

The AEMC MTX 3293 includes advanced measurement functions such as Duty Cycle, Pulse Counting, Math function and monitoring of Min/Max/Avg/Peaks enabling you to observe many various aspects of electrical quantities. The MTX 3292 includes a USB Optical Connector with SX-DMM Software is available as an option. The MTX 3293 is rated to 1000V CAT III / 600V CAT IV.
