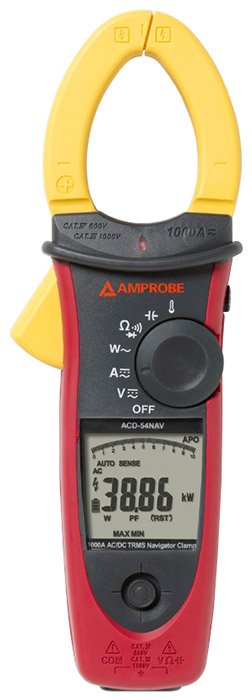

The Amprobe ACDC-54NAV clamp meter serves as the first line of defense in any industrial setting. Typically used for facilities maintenance, the Amprobe ACDC-54NAV clamp meter can verify system performance and quickly troubleshoot problems to minimize downtime. The ACDC-54NAV is also a convenient, everyday tool for those working on critical machinery. Other typical applications for the Amprobe ACDC-54NAV include motor testing, power quality analysis, transformer servicing, and HVAC maintenance.

The Amprobe ACDC-54NAV clamp meter measures AC and DC voltage up to 1000 V, and AC/DC current up to 1000 A. The unit is CAT IV 600 V / CAT III 1000 V rated. It also measures resistance, frequency, capacitance, and temperature. A full suite of robust advanced features are included, such as power and power factor measurement, total harmonics distortion, individual harmonics analysis, and a low pass filter for variable frequency drives, to name a few. Designed for one-hand operation, Amprobe's leading-edge navigation system eliminates traditional push buttons, replacing them with an easy-to-use joystick that allows quick selection of measurement features on the display. Simply highlight the desired measurement function using the joystick and press to select. The ACDC-54NAV is rugged and reliable, and also features a super bright backlit display, built-in jaw flashlight, and shock-absorbent over-mold body — everything you need for commercial and industrial electrical environments.

Features

• True RMS measurement
• Comprehensive measurement capabilities:
  • Voltage up to 1000 V AC/DC, resistance, frequency, THD (Total Harmonics Distortion) and individual harmonics from 1 to 25, power, and power factor
  • AC/DC Current up to 1000 A
  • Capacitance measurement
  • Temperature measurement in °C or °F (temperature adapter and probe included)
• Phase rotation indication
• Non-contact voltage detection
• Inrush current measurement for motor startup analysis
• Low pass filter for variable frequency drives
• Audible continuity beeper
• Min, Max and Smart Data Hold functions
• Peak hold function
• Auto torch-light activation when clamping
• Large 10,000 count display with active backlight and analog bar graph
• Auto Power Off function
• Maximum jaw opening 1.77” (45mm)
• 4 feet drop proof construction
• Deluxe carrying case included
• CAT IV 600 V / CAT III 1000 V safety rated
