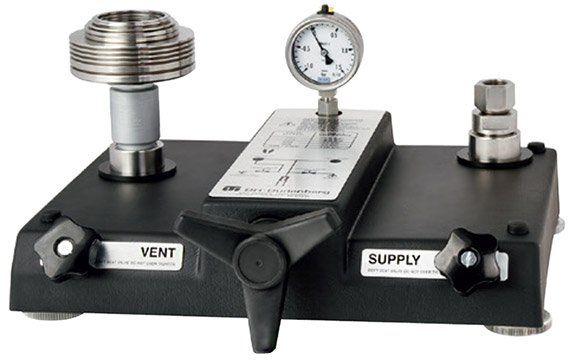

The DH-Budenberg CPB3500 is a compact pneumatic deadweight tester providing superior accuracy and reliability for ranges up to 1600 psi. As a genuine primary standard, it derives pressure measurement directly from the fundamental equation p = F/A, ensuring reliability, stability, and minimal measurement uncertainty .

Built on a stable aluminum base with lightweight impact-resistant ABS case, the CPB3500 is suitable for both laboratory and on-site use. Piston cylinders are interchangeable among various models, allowing easy upgrades when requirements change. Mass sets are fully interchangeable between pistons of the same range and are made of non-magnetic stainless steel for long-term stability .

Two built-in precision soft-seat valves combined with a volume adjuster provide fine pressure control capability. A safety pattern gauge shows approximate pressure. Masses are top-loading for faster operation and are available in common pressure units. Complete with comprehensive accessories and traceable calibration certificate .

Key Features

• Pressure range: -1 to 120 bar / -14.5 to 1,600 psi
• Measurement uncertainty: from 0.015% of reading (0.006% optional)
• Five interchangeable piston-cylinder systems available
• Stable aluminum base with impact-resistant ABS cover
• Interchangeable masses (stainless steel) for each model
• Two precision soft-seat valves with volume adjuster
• Top-loading masses for faster operation
• Compact dimensions and light weight for portability

What's Included

• Mass set manufactured to standard gravity (9.80665 m/s²)
• Piston-cylinder system
• Operating instructions
• Factory calibration certificate
• Complete tool set (wrenches, hex keys)
• Spirit level and leveling plates
• Seal kit and connection adapters

Applications

• Factory and calibration laboratory use
• On-site pressure instrument testing
• Daily calibration of pressure measuring instruments
