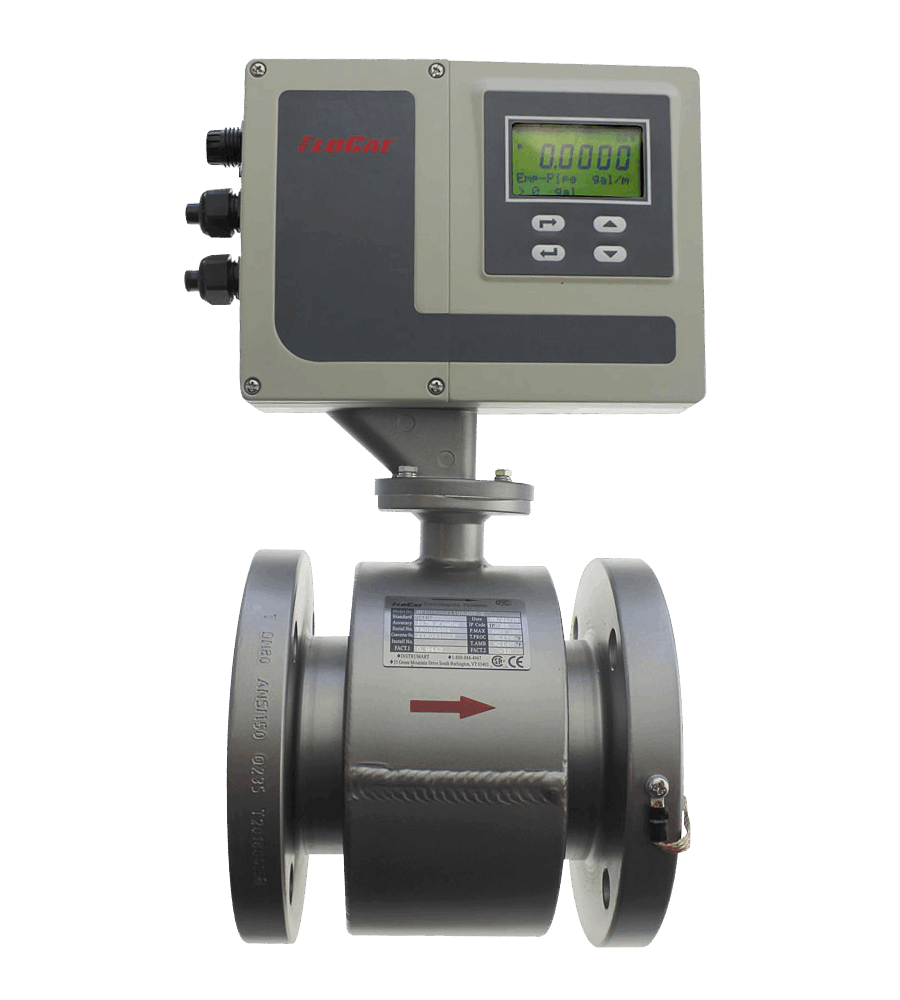

The FloCat MFE is a complete electromagnetic flow metering system, combining both a flow sensor and transmitter into one convenient package. It incorporates rugged carbon steel construction with 150# ANSI flanges creating a versatile, user-friendly flow metering system for general purpose applications involving clean, sanitary, dirty, corrosive and abrasive liquids .

Available in sizes from 1 to 24 inches, the MFE has no parts to obstruct flow resulting in no pressure loss and the 0.75% accuracy is not affected by temperature, pressure, viscosity, density or flow profile. With no moving parts, practically no maintenance is required. The chloroprene rubber sensor liner is suitable for liquid temperatures from -13 to 176°F and is compatible with most water-based fluids and many chemicals .

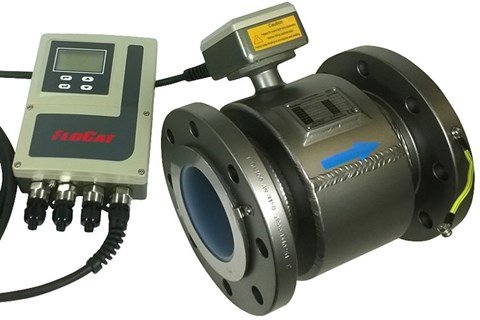

The transmitter includes both 4-20mA and pulse output, and can be mounted either integrally to the flow sensor or remotely. A three-line LCD displays flow total, flow velocity, flow rate percent of range, and alarm settings. A four-button keypad is used to change settings, with 27 flow unit options programmed into the transmitter .

The FloCat MFE is IDWR-certified as outlined in the Idaho Department of Water Resources requirements. It has been tested by the staff at Utah State's NIST traceable lab and passed all requirements set by the IDWR and Idaho Department of Agriculture .
