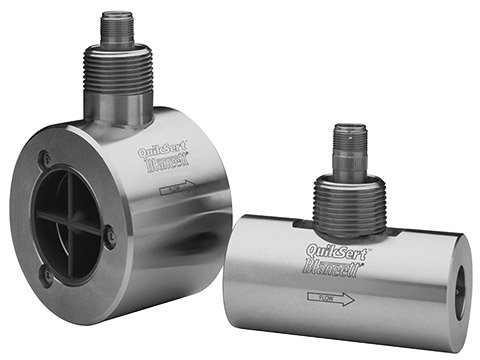

The Blancett QuikSert flow meter is an inline turbine flow meter that provides high accuracy and rigorous design in a wafer-style mounting configuration. It features a 316 stainless steel housing and rotor support, a CD4MCU stainless steel rotor, and an abrasion-resistant tungsten carbide rotor shaft and bearings. It provides an efficient and long service life and offers a cost-effective solution for your measurement requirements.

Simple in design and construction, the Blancett QuikSert flow meter utilizes modified upstream and downstream flow straighteners for a high degree of flow accuracy. The "between-the-flange" design eliminates the need for mating flanges, requiring less space in the flow line, lowering costs, and providing easy, one-person installation. The Blancett QuikSert flow meter has precision upstream and downstream flow straighteners to ensure a high degree of measurement accuracy.

Blancett QuikSert flow meters produce a sine-wave signal proportional to the volumetric flow rate. With optional Blancett electronics, the Blancett QuikSert flow meters provide local flow rate and volume totalization and will interface with most instruments, PLCs, and computers. The Blancett QuikSert flow meter is also available as an explosion-proof model for use in hazardous locations. The meter offers ±1% of reading accuracy, ±0.1% repeatability, and about 10:1 turndown ratio. Operating temperature range is -150 to +350°F standard, up to +425°F with high-temp pick-up.
