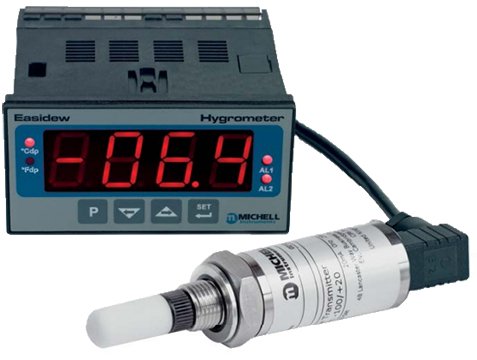

The Michell Instruments Easidew online dew point hygrometer offers a panel or bench mount hygrometer with a large digital display, analog and digital outputs, and dual alarm features programmable through the display. Utilizing the Michell Instruments Easidew transmitter, this hygrometer provides a measurement range of -166 to +68°Fdp (-110 to +20°Cdp) or 0 to 3,000 ppm moisture content with accuracy of ±3.6°F (±2°Cdp).

The display is housed in a 1/8 DIN case with IP65 (NEMA 12) rating on the front panel. Both 85-264 VAC and 24 VDC power options are available. Analog output options include 4-20mA or 0-20mA, while RS-232 is the digital output. A 0.8 meter cable connecting the transmitter to the display is supplied standard, with longer custom lengths available up to 800 meters.

The sensor is rated IP66 (NEMA 4), ensuring reliable operation in demanding industrial environments. Dual user-programmable alarms can be configured through the front panel display.

Key Features

• Dew point range: -166 to +68°Fdp (-110 to +20°Cdp)
• Moisture content range: 0-3000 ppm
• Accuracy: ±3.6°F (±2°Cdp)
• Repeatability: ±0.9°Fdp (±0.5°Cdp)
• 5/8" and 3/4" UNF process connection options
• Large digital display in 1/8 DIN case
• Analog outputs: 4-20mA or 0-20mA
• Digital output: RS-232
• Dual user-programmable alarms
• Power options: 85-264 VAC or 24 VDC
• Sensor IP66 (NEMA 4), monitor IP65 front panel

Applications

• Industrial process monitoring
• Compressed air systems
• Natural gas moisture measurement
• Pharmaceutical manufacturing
• Petrochemical processing
