Product Specifications
Manufacturer: E+E Elektronik
Model Number: EE160
Type: Humidity Transmitter
Humidity Range: 10 to 95% RH
Accuracy: ±2.5% RH at 20°C
Temperature Sensor: Pt1000
Outputs: Analog, BACnet MS/TP, Modbus RTU
Documents: Product Manual, Product Specs
Product Description

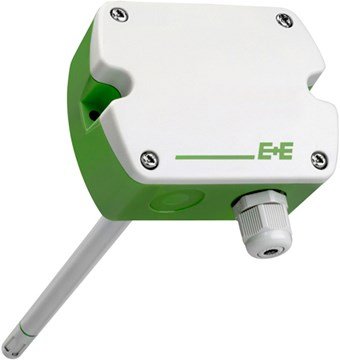

The E+E EE160 Humidity / Temperature Transmitter is a cost-effective, highly accurate, and reliable solution for measuring relative air humidity and temperature in HVAC applications. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation.
The EE160 features the HCT01 humidity/temperature sensor element with excellent long-term stability and resistance to pollutants. It provides measurement accuracy of ±2.5% RH and is available for wall or duct mounting with current, voltage, BACnet MS/TP, or Modbus RTU outputs.
Resources & Documentation
HVAC Humidity Temperature Transmitter - Cost Effective | E+E EE160
Product Specifications
Manufacturer: E+E Elektronik
Model Number: EE160
Type: Humidity Transmitter
Humidity Range: 10 to 95% RH
Accuracy: ±2.5% RH at 20°C
Temperature Sensor: Pt1000
Outputs: Analog, BACnet MS/TP, Modbus RTU
Documents: Product Manual, Product Specs
