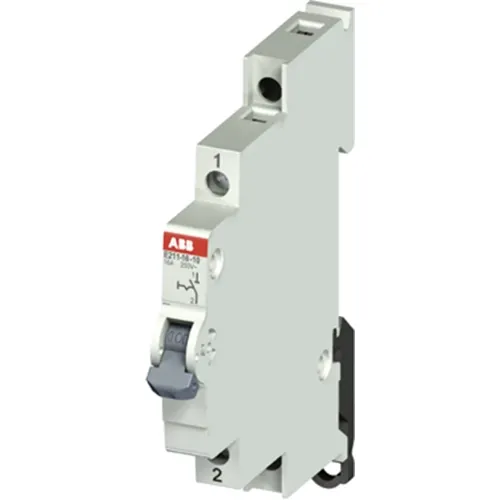

In a typical distribution board or control panel, space is rarely abundant. Every millimeter of DIN rail carries a cost, and when you need a simple on-off switching function, committing a full 17.5mm module to a miniature circuit breaker feels wasteful. The ABB E211-16-10 exists precisely for that reason — it delivers clean, reliable switching in just 9mm of width, freeing up valuable panel space for other components.

What This Switch Actually Does
The E211-16-10 is a 1-pole, 16A rated on-off switch. It connects or disconnects a single circuit under load, providing a manual means of isolating equipment for maintenance, emergency stopping, or routine power cycling. Unlike a circuit breaker, it does not provide overload or short-circuit protection — that responsibility remains with upstream protective devices. What it does offer is a positive, visible break in the circuit, with clear ON/OFF position indication and the ability to be sealed in either state for tamper-resistant applications.

The Space-Saving Design
The defining feature of this switch is its 9mm width, exactly half the standard 17.5mm module. On a crowded DIN rail, this difference matters. Where a traditional device occupies one full module, the E211-16-10 takes half that, leaving room for an extra component elsewhere. The overall dimensions are 85mm in height and 68mm in depth, fitting neatly into standard distribution enclosures and industrial panels.

Electrical Capabilities
Rated at 16A continuous current, the switch handles AC voltages up to 400V and DC voltages up to 50V. Under AC-22A utilization category (switching of mixed resistive and inductive loads with moderate overloads, frequent actuation), it delivers the full 16A at 400V. For DC applications at 200V, the rating reduces to 1A under DC-22A conditions. The rated impulse withstand voltage of 6kV ensures the device survives voltage spikes and surges commonly encountered in industrial environments. Short-circuit breaking capacity (Ics) is 3kA, meaning the switch can safely interrupt a fault current of that magnitude if called upon, though upstream protection is still recommended. Power loss is minimal at 0.32W, contributing to efficient thermal management within the enclosure.

Connection and Installation
The switch mounts directly onto 35mm DIN rail in accordance with EN 60715, snapping into place without tools. Terminals accept solid conductors from 1 to 6mm² (single wire) or 2.5mm² (two wires), and flexible conductors from 0.75 to 2.5mm². Recommended tightening torque is 1.2-1.5 N·m. The contacts are copper with a double-interrupting design, enhancing switching reliability and arc extinction. The device can be sealed in both ON and OFF positions using standard sealing wire, a useful feature for applications requiring tamper evidence or lockout/tagout compliance.

Compliance and Certifications
The E211-16-10 meets multiple international standards: DIN EN 60669-1 and VDE 0632 Part 1 for on-off switches, as well as IEC/EN 60947-3 for low-voltage switchgear and controlgear. UL 508 certification extends its suitability for North American installations. Environmental compliance includes RoHS (following EU Directive 2002/95/EC) and SVHC-free status under REACH. Country of origin is Switzerland, with customs tariff number 85365080 and EAN 7612270938575. WEEE category is 5 (Small Equipment).

Where You Will Use It
Typical applications include main switches in small distribution boards, isolation switches for individual circuits or machines, control panel power disconnects, emergency stop interfaces, and manual switching points for lighting or heating circuits. The compact width makes it particularly suitable for portable distribution boxes, test panels, and any enclosure where DIN rail space is at a premium. For applications requiring visible position indication or illuminated status, the E211 series supports auxiliary contacts and yellow LED indicators as add-on modules.

Family Context
The E211-16-10 belongs to ABB's System pro M compact range of modular DIN rail components. Within the E211 series, the suffix indicates the configuration: -10 denotes 1 normally open contact, -20 denotes 2NO, -30 denotes 3NO, and -40 denotes 4NO. The same 16A rating is available across all configurations, and the series also includes 25A and 32A variants for higher current requirements. For applications needing a neutral switching function, ABB offers companion devices within the same form factor.

The Practical Upside
This switch solves a problem that panel builders encounter regularly: you need to add a disconnect function to an already crowded rail. Reorganizing the entire panel to free up space is time-consuming and costly. The E211-16-10 slips into the 9mm gap left by a repositioned component or fills the half-module slot that would otherwise remain empty. It is not a glamorous product, but in the daily work of electrical assembly, it is exactly the kind of thoughtful detail that makes a layout work.
