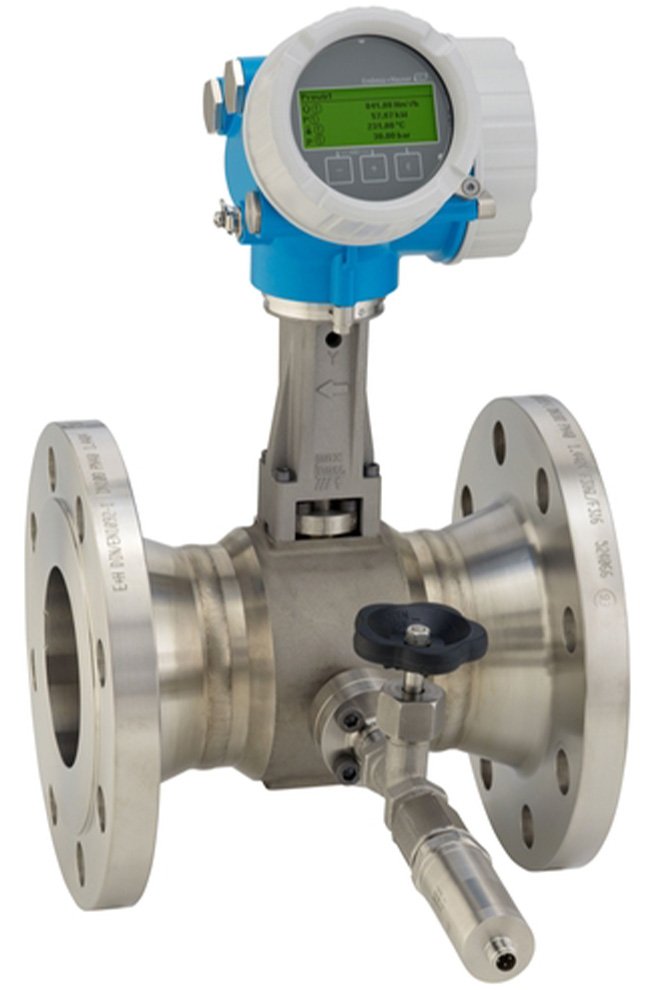

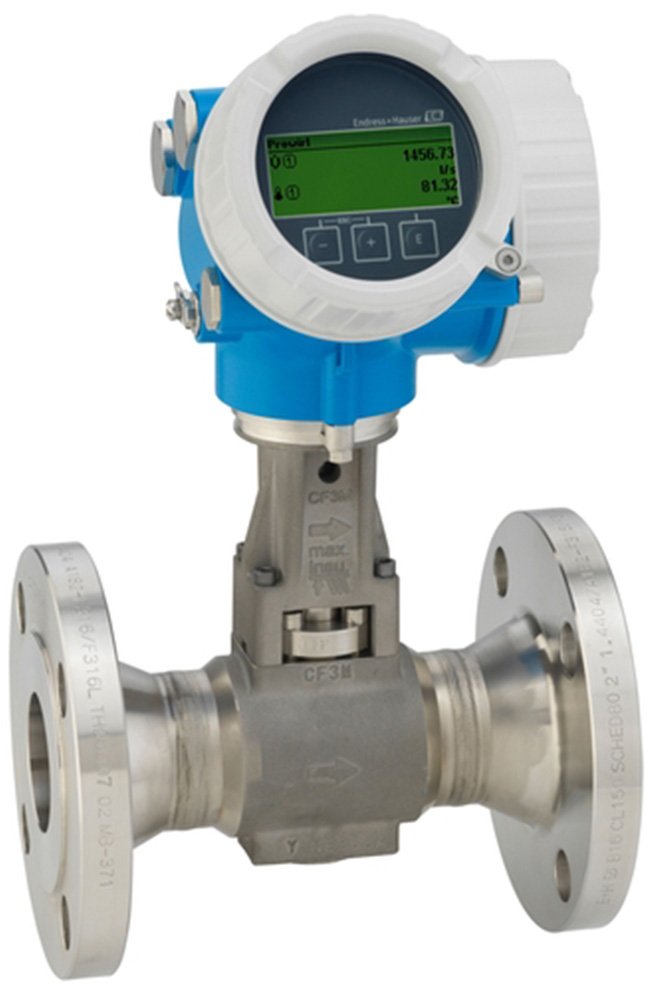

The E+H Proline Prowirl F 200 vortex flow meter offers the preferred measuring principle for wet, saturated or superheated steam, gases and liquids. The meter features a robust, drift-free capacitive sensor for long-term stability, and a separate connection compartment for convenient device wiring. With genuine loop-powered technology, the F 200 enables cost-effective and seamless integration into existing infrastructures.

The Prowirl F 200 measures volume flow, mass flow, energy flow, heat flow difference, and temperature. It is available in nominal diameters from DN 25 to 300 (1 to 12 in) for wet steam applications. Accuracy reaches up to ±0.65% for volume flow and up to ±0.85% for mass flow, with consistent accuracy down to Reynolds number 10,000.

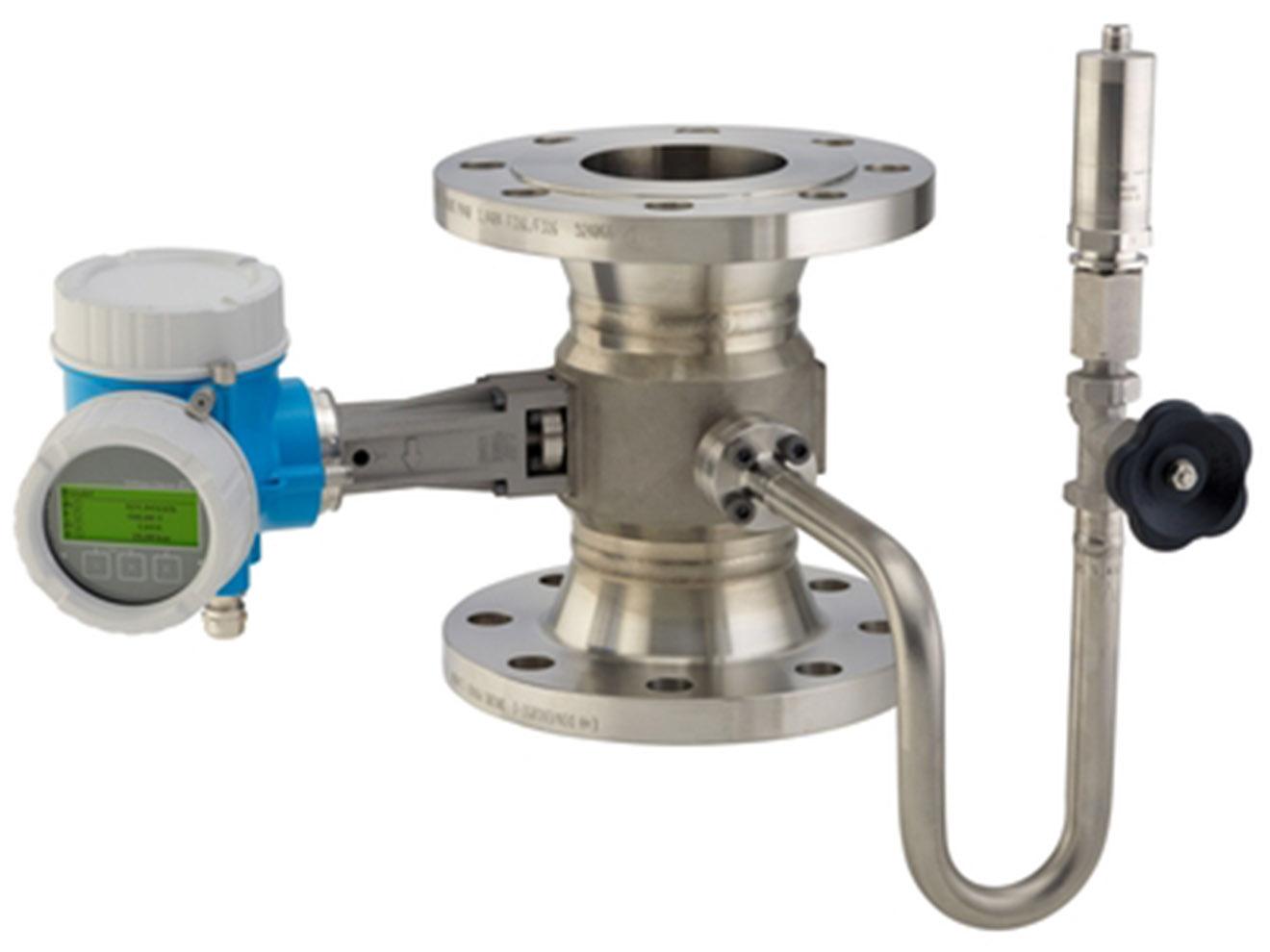

The meter features integrated verification with Heartbeat technology ensuring process safety at all times. It also includes flexible positioning of the pressure cell, an industrial siphon design for pressure measurement, and a display module with data transfer function. Medium temperature range is –40 to 500°F (–40 to 260°C) standard, with an optional extended range of –328 to 752°F (–200 to 400°C). Maximum process pressure is PN 100, Class 600, 20K. The 4-line backlit display with touch control provides easy operation, and hazardous area approvals include ATEX, IECEx, cCSAus, JPN, EAC.
