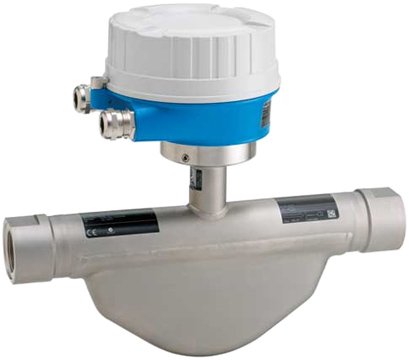

The E+H Proline Promass G 100 Coriolis flow meter provides safe and accurate measurement of liquids and gases in high pressure applications up to 350 bar (5080 psi). Rupture disc and threaded process connections provide easy and safe integration. Combined with the smallest transmitter housing available today, it delivers full performance on the smallest footprint.

Liquid mass flow error ±0.15%, gas mass flow error ±0.75%, density error ±0.0005 g/cm³. Measuring range up to 18,000 kg/h. Medium temperature range -50 to +150°C. Process pressure up to 350 bar (5080 psi). Wetted materials: measuring tube 1.4435 (316L), connections 1.4404 (316/316L). Internal thread process connections. Rupture disc option for enhanced safety.

Robust ultra-compact transmitter housing. Pre-configured plug connector simplifies installation. Local display available. Heartbeat Technology ensures measurement reliability. Designed for applications where space is at a premium, Promass G 100 is the preferred choice for system integrators, skid builders and equipment manufacturers.
