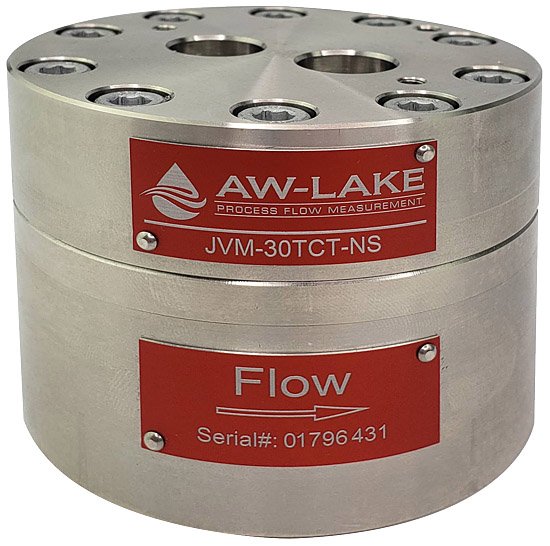

The AW-Lake JV-TC positive displacement gear flow meter measures non-lubricating and filled fluids with an improved gear/shaft design, increased pressure ratings and improved flushability over its predecessor. These improvements, along with the standard 7-point calibration and new EDGE sensor, offer a 0.5% accurate meter across the full flow range.

Flow ranges from 0.001 to 20 GPM across all meter sizes. Accuracy ±0.5% over full range with 30cP fluid, repeatability ±0.1%. Maximum operating pressure is 6,000 PSI with turndown up to 400:1. Body materials are 303 or 316L stainless steel. Applications include filling and dosing systems, paint shops and delivery systems, polyurethane systems, multiple-component mixing systems, adhesive dispensing systems, and hydraulic systems.
