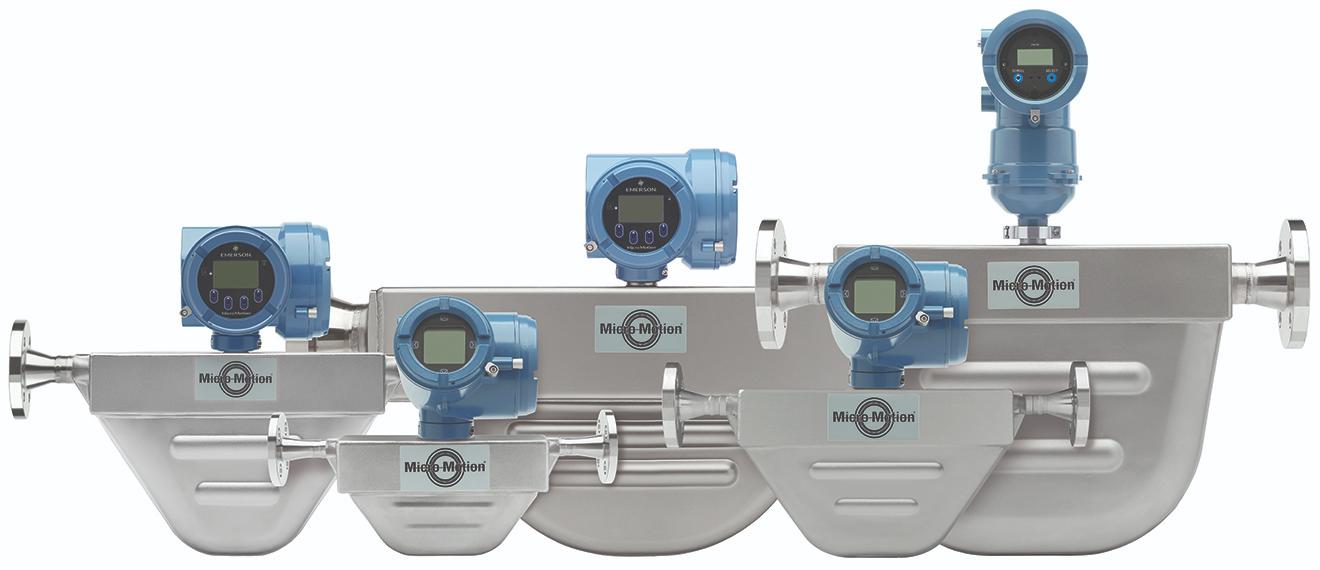

The Micro Motion F-Series Coriolis flow sensor measures necessary flow and density process variables simultaneously with reliable performance, even under the most demanding process conditions. Multiple line sizes (1/4 to 2 inches) provide an ideal platform for batching, distribution, allocation, and intra-plant measurement applications.

Accuracy selectable from ±0.10% to ±0.20% of flow rate. Wetted parts available in 316L stainless steel or nickel alloy C22. Standard temperature rating -100 to 204°C; high temperature option (-40 to 350°C) available on 1-inch and smaller sizes. Standard pressure rating 1450 psi for SS, 2160 psi for C22; high pressure options available for 1/4 and 1/2-inch sizes.

Self-draining design suitable for critical process control service. Low frequency, high sensitivity fit-and-forget meter. Smart Meter Verification (SMV) standard. I/O offerings include HART, Profibus-DP, Foundation Fieldbus, and 4-20mA.
