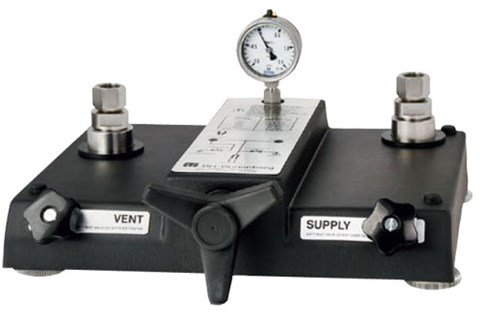

The DH-Budenberg CPP120-X Comparison Pump is designed to deliver pneumatic pressure for the testing, adjustment and calibration of mechanical and electronic pressure measuring instruments via comparative measurement. It is suitable for use in laboratories, workshops, and on-site at measuring points.

The CPP120-X can reach a maximum pressure of 120 bar. When the device under test and a high-accuracy reference pressure measuring instrument are connected to the test pump, identical pressure is applied to both instruments. By comparing the two measured values at any set pressure point, the accuracy of the test instrument can be verified, and adjustment can be performed as needed.

For precise pressure setting during accurate comparative testing, the pump is equipped with a precision volume adjuster. A port for connecting an external pressure or vacuum source is located on the rear panel. Individual test points can be easily controlled via two integrated fine metering valves for pressure inlet and outlet. The two test ports are fitted with G 1/2 female loose union connections, with corresponding thread adapters available for calibrating instruments with different connection threads.

The CPP120-X is distinguished by its compact dimensions, which remain unchanged during operation as the spindle runs entirely within the pump body. Combined with its exceptionally robust ABS plastic housing and low weight, this compact design makes the CPP120-X perfectly suited for on-site field calibration applications.

Applications

• Comparative calibration of mechanical and electronic pressure measuring instruments
• Laboratory and workshop pressure gauge and transmitter calibration
• On-site field pressure testing and adjustment
• Pressure instrument accuracy verification and routine maintenance

Features

• Pneumatic pressure generation up to 120 bar for on-site, laboratory and workshop use
• Suitable for testing, adjustment and calibration of all types of pressure measuring instruments
• Dual fine metering valves for pressure inlet, outlet and vacuum control
• Precision adjustable volume adjuster for fine pressure tuning
• Integrated port for external pressure or vacuum source connection
• Built-in pressure gauge for approximate pressure indication
• Compact, spindle-integrated design for on-site field applications
• Robust ABS plastic housing for durable performance in harsh environments
• 2 x G 1/2 female loose union test ports, with thread adapters available
