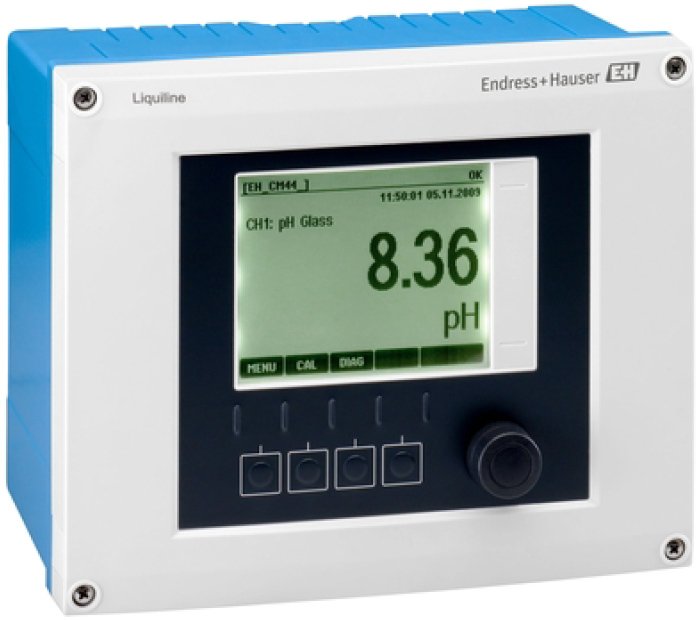

8-Channel Multi-Parameter Transmitter - Memosens Digital | E+H Liquiline CM448

1 / 5

Product Specifications

Manufacturer:Endress+Hauser

Product Number:Liquiline CM448

Type:Multi-Parameter Digital Transmitter

Input Channels:1 to 8 Memosens digital sensor inputs

Supported Sensors:pH, ORP, ISFET, conductivity (inductive/conductive), dissolved oxygen, nitrate, turbidity

Outputs:2-8x 0/4-20 mA, alarm relay, 4x relays

Communication Protocols:HART, PROFIBUS DP, Modbus RS485, Modbus TCP, EtherNet/IP, PROFINET, Webserver

Optional Inputs:2x 0/4-20 mA, 2-4x digital inputs

Enclosure Material:PC-FR (polycarbonate)

Ingress Protection:IP66 / IP67

Process Temperature:-20 to 55°C (-4 to 130°F)

Dimensions (HxWxD):237 x 194 x 162 mm (9.33 x 7.64 x 6.38 in)

Features:Heartbeat Technology diagnostics, SD card for configuration, plug-and-play modules, modular expandability

Documents: Product Manual, Product Specs

Product Description

The E+H Liquiline CM448 is an 8-channel modular 4-wire transmitter for process monitoring and control across all industries. Based on the Liquiline platform, it accepts 1 to 8 digital Memosens sensors in any combination for pH, ORP, conductivity, dissolved oxygen, nitrate, turbidity, and more. Plug-and-play modules and sensors enable simple expansion and reduce spare parts inventory.

Heartbeat Technology provides continuous diagnostics, predictive maintenance, and verification without process interruption. Communication options include 4-20mA, HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, and PROFINET. Built-in web server allows remote access via any browser.

The robust PC-FR housing is rated IP66/IP67. Configuration is saved on SD card for quick duplication. Applications include food & beverage, life sciences, power & energy, water & wastewater, chemicals, and marine.
