Product Specifications
Manufacturer:Rice Lake Weighing Systems
Product Type:Industrial Crane Scale
Part Number:MSI-4260
Capacity:500 lbs up to 100,000 lbs
Accuracy:±0.1% +1d of applied load
Display:5 digit, 1.2in (30mm) LED with programmable brightness control
Enclosure:NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum
Configuration:Top lifting eye or shackle, bottom thrust bearing swivel hook
Options:Intrinsically safe configuration, rugged remote control
Compliance:OSHA, ANSI, ASME
Documents: Product Manual, Product Specs (2 Files)
Product Description

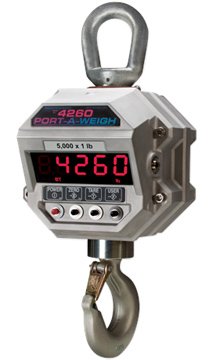

The Rice Lake MSI-4260 Port-A-Weigh Crane Scale is designed for medium to heavy capacity and duty-cycle needs in industrial environments. It meets or exceeds all industrial safety requirements, including OSHA, ANSI, and ASME, making it an economical choice for many bridge crane, foundry, and in-process material handling applications .
The MSI-4260 features a five-digit, 1.2-inch (30 mm) LED display with programmable brightness control for optimal visibility in various lighting conditions. The enclosure is NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum, providing excellent protection against moisture and dust in demanding industrial environments.
With capacity ranging from 500 lbs up to 100,000 lbs and accuracy of ±0.1% +1d of applied load, the MSI-4260 delivers reliable performance for a wide range of weighing applications. The scale features a top lifting eye or shackle and bottom thrust bearing swivel hook for secure load attachment and rotation.
Optional features include intrinsically safe configuration for hazardous area applications and a rugged remote control for convenient operation. The MSI-4260 has an established reputation as the industry standard in overhead weighing, providing dependable service in the most demanding industrial environments.
