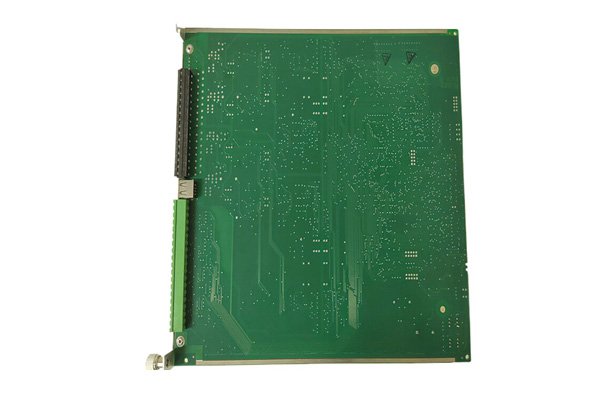

The Metso IOP345 is a high-performance I/O processor module integral to the Metso DNA (Valmet DNA) automation platform. It functions as a distributed processing node, handling real-time I/O data acquisition, executing control algorithms, and managing communication with field devices via standard fieldbus protocols. The module features a powerful 32-bit processor, onboard memory for logic execution, and dual Ethernet ports for network redundancy.

Equipped with a 32-bit RISC processor running at 400 MHz, the IOP345 includes 128 MB SDRAM and 64 MB Flash memory for application storage. It supports up to 256 I/O points per module via the backplane and offers 1+1 redundancy with automatic switchover for mission-critical processes. The module operates on 24V DC ±20% power supply with typical current consumption of 150 mA.

Dual 10/100BASE-TX Ethernet ports support media redundancy protocols such as MRP and RSTP for fault-tolerant network connectivity, ensuring continuous operation even in the event of a cable or switch failure. Built-in fieldbus interfaces include Profibus DP (9-pin D-sub), Modbus RTU (RS-485), and CANopen (5-pin), enabling direct connection to intelligent sensors, actuators, and drives. Supported protocols also include Profinet, EtherNet/IP, and Modbus TCP via software selection.

The IOP345 is capable of executing pre-programmed IEC 61131-3 control logic (ladder, function block, structured text) directly at the I/O level, reducing controller workload and enabling local control actions even if communication with higher-level controllers is temporarily lost. The module supports hot-swap replacement, allowing insertion or removal while the system is powered, minimizing downtime during maintenance or expansion.

Front-panel LEDs indicate module status, network activity, and I/O health, with detailed diagnostics available via system software for predictive maintenance. The conformal-coated PCB protects against humidity, dust, and corrosive gases, with an operating temperature range of -20°C to +60°C and storage temperature from -40°C to +85°C. The module is designed for standard 19-inch rack mounting, single slot, with dimensions of 100 × 60 × 30 mm and weight of approximately 0.4 kg. Certifications include CE, UL 61010-1, CSA C22.2, and optional ATEX Zone 2.

The IOP345 is deployed in demanding industries requiring high availability and deterministic performance, including power generation (turbine control systems, boiler management), pulp and paper (paper machine sections, chemical recovery), chemical and petrochemical (batch reactors, distillation columns, safety interlocks), and mining and minerals (conveyor control, crusher monitoring, slurry handling systems).
