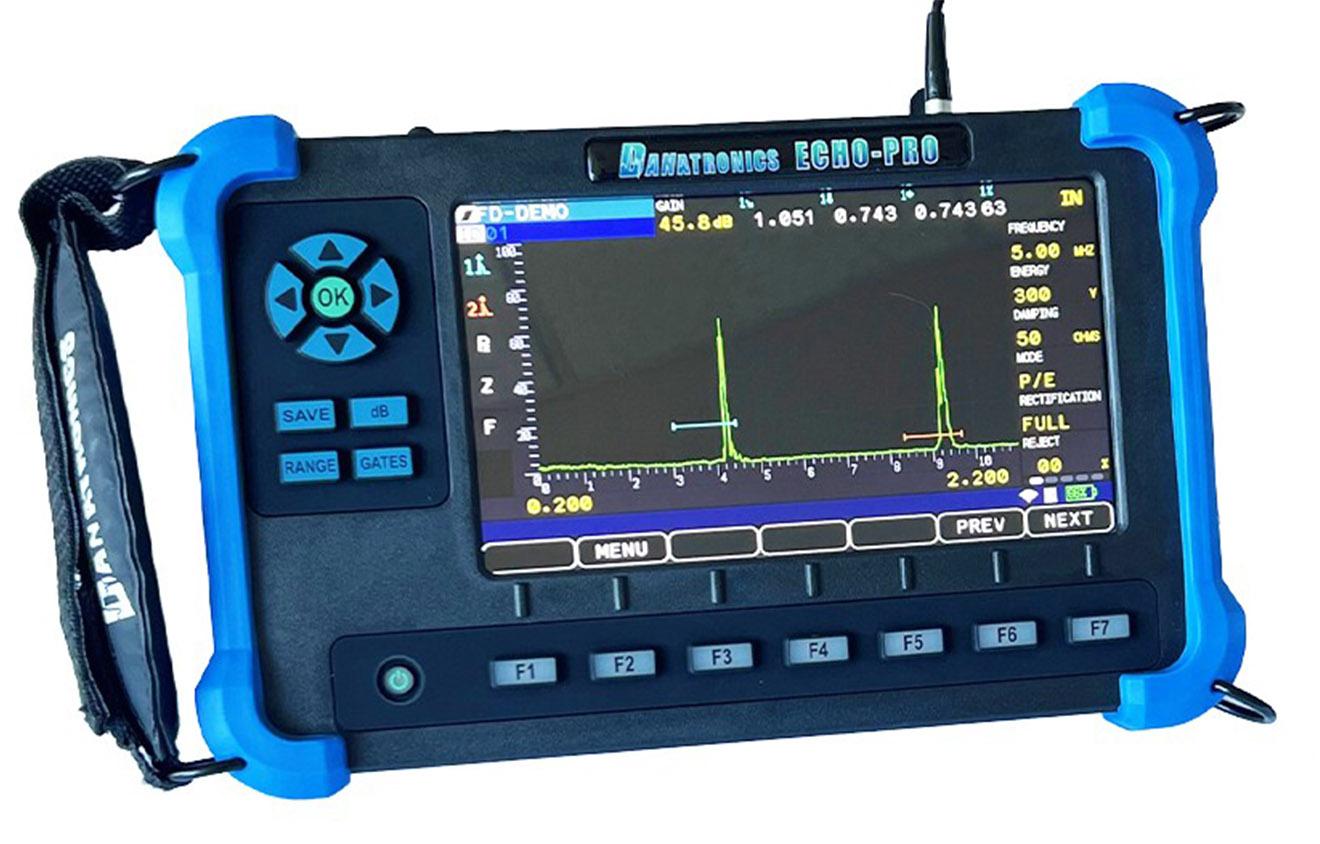

The Danatronics ECHO PRO ultrasonic flaw detector features a datalogger with export of thickness readings to Excel, 2 gates, AWS D1.1 weld inspection, API 5UE, DAC curve, single hand and touch screen operation. It incorporates a 600 Volt pulser with continuous 8-10 hour battery operation.

Advanced features include damping, digital filters, analog and alarm outputs, Wi-Fi and Bluetooth connectivity. Optional features include interface gate, floating and tracking gates, extended range, and back echo attenuator.

Measurement range is 0.353in to 277in at 5,900m/s (0.2320in/μs) with adjustable measurement rate from 10 Hz to 2 kHz. The 7-inch VGA touch screen display provides clear visualization. Power is supplied by a 7.2V 13.6AH rechargeable lithium-ion battery with 100-240 VAC input.

Interfaces include USB, Wi-Fi, Bluetooth with optional RS-232. Color changing and vibrate on alarm features enhance usability. Unit is CE certified, RoHS compliant, designed to IP67 specifications. ASTM E317-15 calibration certificate included.
