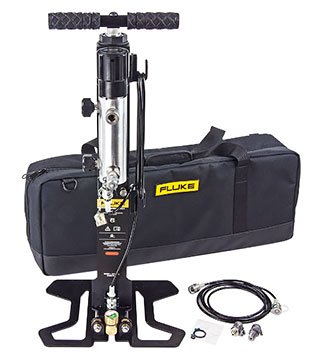

The Fluke Calibration 700HPPK pneumatic test pump kit integrates both a calibration manifold and a high-pressure pump, for generating and finely adjusting controlled pressure. It supplies pressure to devices under test (DUTs) including pressure transmitters, controllers, pilots, digital and analog gauges, and other pressure measuring instruments. When paired with Fluke 2700G reference pressure gauges or 700G precision pressure gauges, it forms a complete, turnkey pressure calibration solution.

The 700HPPK is a safe, portable pressure source, perfectly suited for generating high pressure in field environments where operating conditions and work surfaces can vary widely. It is designed for calibration technicians, test engineers, and instrument technicians working in industries including natural gas transmission and distribution, process manufacturing, aerospace and defense.

Features

• Maximum working pressure of 3000 psi (21 MPa)
• Reaches full scale pressure in 20 seconds into a 10cm³ volume
• 1/4 NPT quick connect for reference gauge connection
• Integrated desiccant filter protects inlet supply from contamination
• 100 micron filter for DUT contamination protection
• Detachable pressure adjustment system for flexible field operation
• 0.05% fine adjustment resolution for precise pressure control
• 0.01% maximum leak rate (with isolation valve closed)
• Integrated calibration manifold for full pressure generation and adjustment
• Compatible with Fluke 2700G reference pressure gauges and 700G precision pressure gauges
• Safe, portable design optimized for field use in variable operating conditions
