The Pepperl+Fuchs HiSHPTB/32/FOX2001C-02 is a HART Termination Board designed as a direct replacement for the IA 200 series Field Termination Assembly (FTA). It is specifically engineered for seamless integration with the Foxboro IA 200 series controller, providing a robust and efficient solution for online HART communications in industrial process automation. The board interfaces up to 32 field-located HART devices, allowing users to replace standard DCS field termination panels and significantly reduce the need for marshalling cabinets and extra equipment, thereby saving valuable cabinet space.

The termination board is designed for easy HiDMux2700 Multiplexer integration with the Foxboro IA 200 series controller. With the multiplexer integrated into the board and plug-and-play options for the DCS equipment, this provides clean and clear access to the HART signals. Its design ensures a compact and organized setup, optimizing the use of available space in control cabinets.

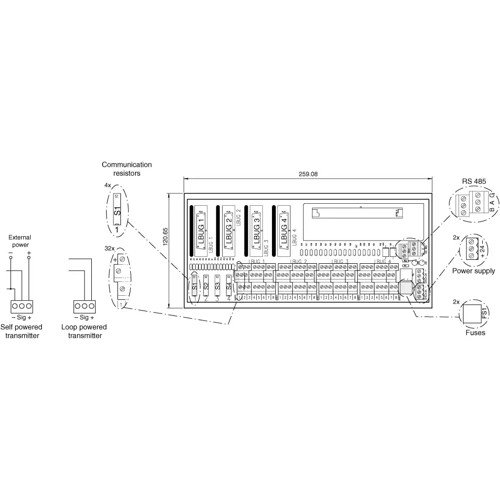

The board features 32 unbalanced signal loops and includes 25-pin Sub-D connectors, PCS wiring, redundant power supply connections, and easy add-on line impedance. The field side connection is via 2 x 37-pin Sub-D sockets, while the control side uses 4 x 26-pin connectors. The RS-485 interface is accessed through removable screw terminals, and the power supply also uses removable screw terminals for easy installation and maintenance.

This HART Termination Board is designed for use with specific Foxboro FBMs, including FBM201, FBM204, FBM215, and FBM237, covering analog input and output applications. It supports a rated voltage of 20 to 30 V DC, with fusing at 315 mA (5 x 20 mm). The board has a power dissipation of 0.7 W (with multiplexer) and includes reverse polarity protection. It features galvanic isolation for HART signal channels.

The board is designed for DIN rail mounting, with dimensions of 260 x 120 x 190 mm (W x H x D). It operates within an ambient temperature range of 0 to 55 °C (32 to 131 °F) and a relative humidity of 5 to 90%, non-condensing. The core cross-section is 2.5 mm² (16 AWG). The board weighs approximately 500 g. It complies with ECLASS 14.0 (27210190) and ETIM 9.0 (EC001485) classifications.

Key applications include integration with Foxboro IA 200 series DCS, connecting HART field devices to asset management systems like AMS Device Manager, and serving as a replacement for existing IA 200 termination panels. Its features, such as redundant power supplies and easy line impedance addition, make it a versatile and reliable choice for modern industrial communication needs.
