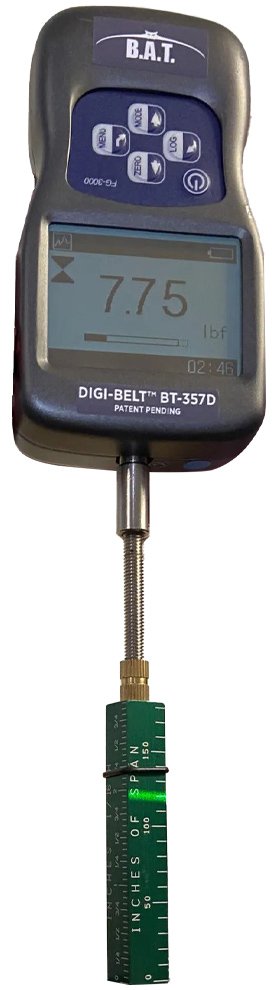

The Reliability Concepts Digi-Belt is a digital tension measurement tool designed for simple, cost-effective tension and compression testing of belts and drive systems. Its compact, ergonomic housing fits comfortably in the hand, while the large backlit LCD ensures clear visibility in any lighting condition.

Three operating modes provide versatility for different testing needs:

• Track Mode: Displays live readings in real time
• Peak Mode: Records and displays the maximum reading sensed during the test
• Preset Mode: Activates user-defined high and low limit set points for pass/fail testing

The programmable limits in Preset Mode provide immediate visual (Pass/Fail icons) and audible indication of test results, making the Digi-Belt ideal for quality assurance and repetitive testing on production lines. An analog bar graph gives perspective of the current reading relative to full scale, while a storage symbol confirms when a reading is logged.

The display orientation can be menu-selected to streamline switching from push to pull testing, whether used as a portable instrument or mounted in a test stand. With ±0.3% FS accuracy, 1000 Hz sampling rate, and selectable engineering units (N, kgf, ozf, lbf), the Digi-Belt delivers reliable, repeatable results. Outputs include USB, RS-232, and high/low limit NPNs for integration with quality systems.

Typical applications include:

• Single, wide, and multi-belt tension measurement
• Timing belt and flat belt testing
• Quality control and production line testing
• Preventive maintenance and field service

Features

• Accuracy: ±0.3% F.S.
• Selectable units: N, kgf, ozf, lbf
• Track, Peak, and Preset operating modes
• Programmable high/low limits with Pass/Fail indication
• 160x128 backlit dot matrix LCD with analog bar graph
• 1000 Hz data sampling rate
• Overload capacity: 150% of F.S.
• Outputs: USB, RS-232, high/low limit NPNs
• Rechargeable Ni-MH batteries
• Aluminum housing
