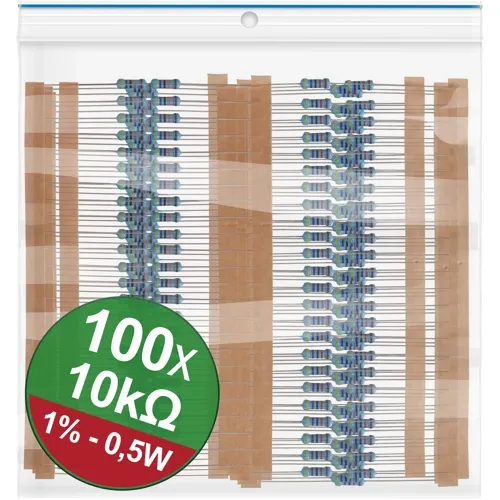

The QUADRIOS 22P096 is a high-precision metal film resistor designed for reliable performance in a wide range of electronic applications. Its axial lead design makes it suitable for through-hole assembly, offering excellent stability and low noise characteristics typical of metal film technology.

Core Specifications:

• Resistance: 10 kΩ
• Power Rating: 0.5 W at +70°C, derated to 0W at +155°C
• Tolerance: ±1%
• Temperature Coefficient (TCR): ±100 ppm/K
• Operating Temperature Range: -30°C to +155°C
• Dimensions: 3.5 mm (D) × 9 mm (L) (axial lead, not pre-formed)
• Mounting Type: THT (Through-Hole Technology)
• Compliance: RoHS conform (SVHC free)

Key Features & Advantages:

• Precision: The ±1% tolerance and low TCR ensure accurate resistance values and stable performance across varying temperatures.
• Reliability: Metal film construction provides excellent long-term stability and low noise, making it ideal for analog and precision circuits.
• Wide Operating Range: Capable of withstanding temperatures from -30°C to +155°C, suitable for demanding industrial environments.
• RoHS Compliant: Meals current environmental standards for lead-free and hazardous substance-free manufacturing.

Applications: This resistor is commonly used in industrial automation, power supplies, automotive electronics, medical devices, and general-purpose electronic circuits requiring precision and stability.
