The Alliance Sensors Group GHS-19 Series LVIT linear position sensor are contactless devices designed for dimensional measurements in QA labs, or position measuring applications in factory automation systems and in various industrial and commercial applications. The GHS-19 is an ideal solution for when the sensing element cannot be attached to the object that is being measured. It is offered in nominal full scale ranges from 0.25 to 4in (6.4 to 100mm). The maximum tip contact force on the item being measured is 1 pound.

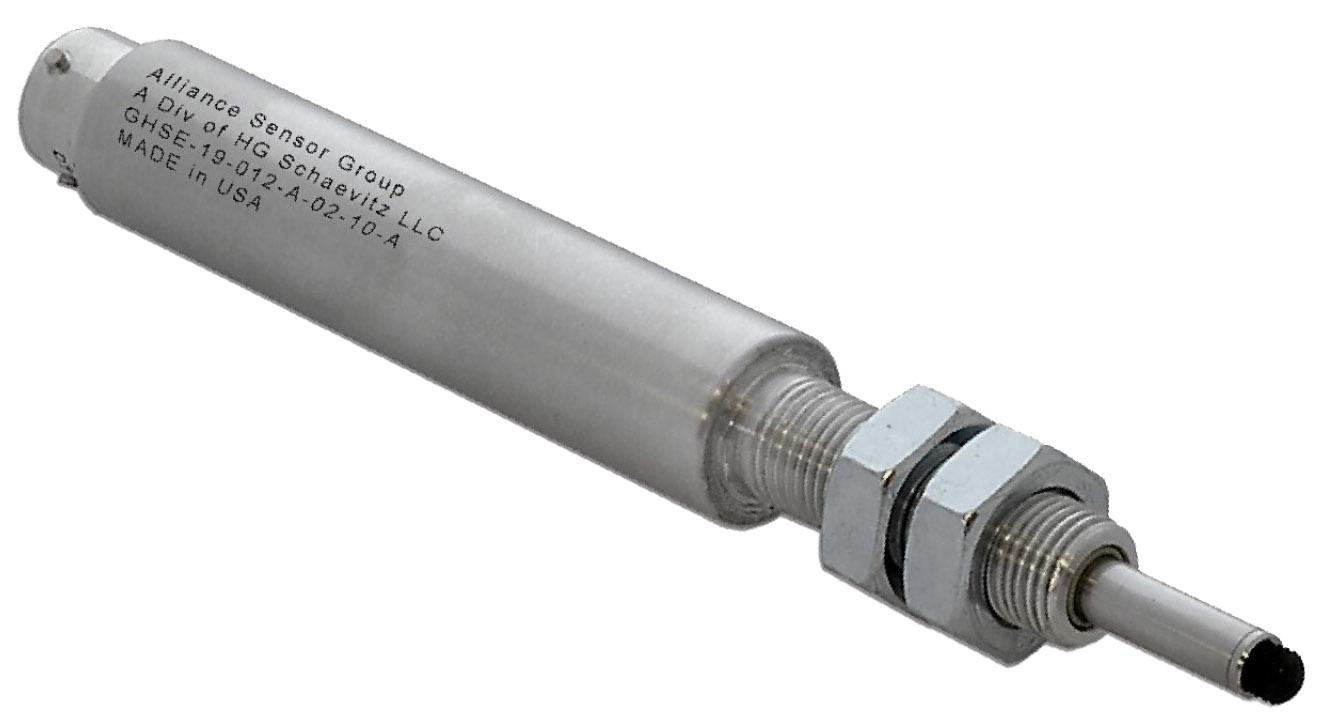

The GHS-19 sensors have a 0.75in (19mm) diameter aluminum or stainless steel body with a 1/2-20 UNF-2A thread 1.5in (38mm) long with two 0.75in (19mm) hex jam nuts for drop-in installation in place of a spring-loaded DC-LVDT gage head. These sensors utilize a probe equipped with a No. 9 contact tip, and are offered with a PT02-10-6P (6-pin) connector. Operating from a variety of DC voltages. These sensors are available with a choice of one of four analog outputs and all include the Alliance Sensors Group Senset™ field recalibration feature.

Applications: Factory Automation, PLC Position Feedback, Test and Measurement, Packaging Equipment.
