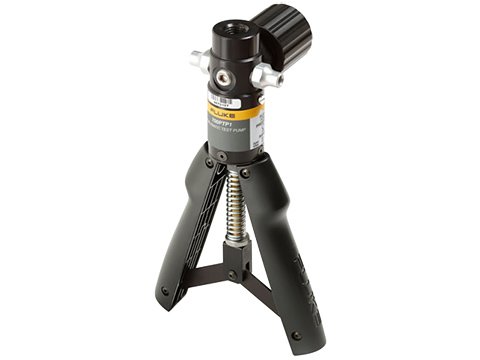

The Fluke 700PTP-1 is a handheld pneumatic test pump designed for calibrating pressure transmitters, switches, and gauges up to 600 psi (40 bar). It features an integral vernier for fine pressure adjustment, which can also serve as a standalone low-pressure calibration source.

The pump has two 1/4" NPT female ports for simultaneous connection of a reference gauge or pressure module and the unit under test. The adjustable stroke length limits pressure per stroke for controlled operation. The pump can be easily cleaned without disassembly.

Includes 1/4" NPT male to 1/4" BSP female adapter, 1-meter hose, two 1/8" NPT male quick connects, 1/8" NPT female to 1/4" BSP female adapter, seal kit, and instruction sheet.

Features

• Pressure range: 0 to 600 psi (0 to 40 bar)
• Vacuum range: -12.7 to 0 psi (-0.87 to 0 bar)
• Two 1/4" NPT female pressure ports
• Integral vernier for fine pressure adjustment
• Vernier usable as standalone low-pressure source
• Adjustable stroke length limits pressure per stroke
• Cleanable without disassembly
• Includes hose, adapters, and seal kit
• Dimensions: 8.7 × 4.8 × 3.5 in
• Weight: 1.03 lb (467 g)
