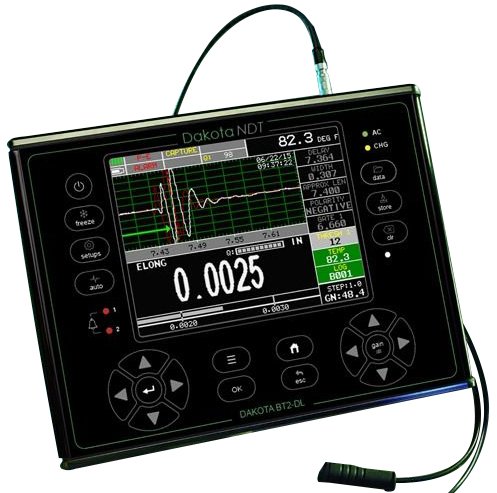

The Dakota NDT BT2-DL benchtop bolt tension monitor uses ultrasonic technology to accurately measure bolt elongation, and calculates time (nanoseconds), elongation, load, stress, and %strain of fasteners during the tightening process. When nuts and bolts are fastened under load, tightening the nut applies tension to the bolt, causing measurable elastic elongation.

Unlike standard torque measurement techniques (which are easily affected by temperature, friction, and resistance factors), the BT2-DL’s ultrasonic measurement principle eliminates these interferences, delivering an industry-leading resolution of ±0.00001 inch (±0.0001 mm).

The gauge can be programmed to automatically stop the bolt tightening process when the target load is reached, via its USB interface paired with an optional shut-off accessory.

Features

• Measurement modes: Pulse-Echo (P-E), Echo-Echo (E-E), Echo-Echo-Echo (E-EV)
• Measurement range: 1 to 999in (25.4mm to 25400mm) in Pulse-Echo (P-E) mode
• Velocity calibration range: 0.0492 to 0.5510 in/μs (1250 to 13995m/s)
• Detection method: zero crossing
• Resolution: ±0.00001in (±0.0001mm)
• Calibration options: automatic, fixed, single, or two-point zero calibration
• Measurable quantities:
  • Time: nanoseconds
  • Elongation: change in length (in/mm)
  • Load: applied force (lb, KIP, MPa)
  • Stress: force per unit area (psi, MPa)
  • %Strain: ratio of elongation to effective bolt length
  • Bolt Materials: select from preset or custom list
  • Repeatability Bar Graph: indicates measurement stability
• Display views: RF (full wave), +/-Rectified (half wave), Digits, Split Screen (wave + large digits)
• Transducer connectors: Two LEMO 00
• 64 custom user-defined setups
• Auto Set feature automates detection, scope, and display settings for each bolt
• Blanview sunlight-readable QVGA TFT color display, 60Hz refresh rate
• Direct USB-C 1.1 PC connectivity
• Meets IP65 ingress protection requirements
