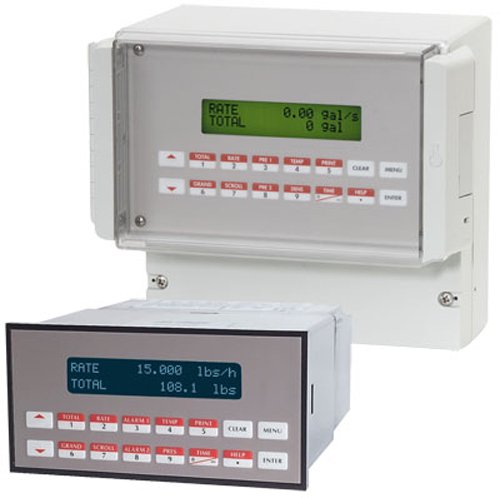

The KEP ES-749 SUPERtrol-II flow computer satisfies the instrument requirements for a variety of flowmeter types in liquid, gas, steam and heat applications. Multiple flow equations are available in a single instrument with many advanced features .

The alphanumeric display of the KEP ES-749 SUPERtrol-II flow computer offers measured parameters in an easy to understand format. Manual access to measurements and display scrolling is supported. The versatility of the flow computer permits a wide measure of versatility within the instrument package .

The various hardware inputs and outputs can be "soft" assigned to meet a variety of common application needs. The user "soft selects" the usage of each input/output while configuring the instrument. Applications of the KEP ES-749 SUPERtrol-II include steam mass, steam heat, natural gas, fuel oil, compressed air, chilled water only, heated water only including low DeltaT cutout .

The isolated analog output can be chosen to follow the volume flow, corrected volume flow, mass flow, heat flow, temperature, pressure, or density by means of a menu selection. Most hardware features are assignable by this method. With the KEP ES-749 SUPERtrol-II flow computer, the user can assign the standard RS-232 serial port for external data logging, transaction printing, or for connection to a modem for remote meter reading. The RS-232 port provides power for modem or two-way pager .

A service or test mode for the KEP ES-749 SUPERtrol-II flow computer is provided to assist the user during start-up system check out by monitoring inputs and exercising outputs. The system setup can also be printed .
