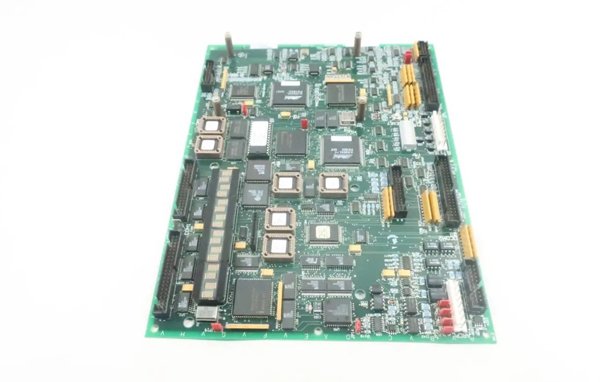

The GE DS200LDCCH1ANA (LDCC) is a Drive Control and LAN Communications board specifically engineered for the GE Mark V Speedtronic turbine control system. As part of the Mark V legacy series, this board serves as a critical communication and processing hub for gas, steam, and wind turbine automation. It is also utilized in the EX2000 excitation system and the DIRECTO-MATIC 2000 drive system. The "ANA" revision designation indicates it is the enhanced version of the base DS200LDCCH1A board, featuring refined hardware and firmware for improved network compatibility and control stability. It is a core processing unit for drive and excitation control in the Mark V system.

The board is built on a Quad-Microprocessor architecture, employing four dedicated processors that operate in parallel to ensure real-time performance and system reliability. This distributed processing approach isolates communication, I/O management, motor control, and complex calculations, preventing single-point failures. The microprocessors are: Drive Control Processor (DCP) which executes core motor control algorithms and processes onboard I/O signals; Motor Control Processor (MCP) which focuses on motor state monitoring and protection logic, processing current, speed, and position feedback; LAN Control Processor (LCP) which manages high-speed network communications, handling protocol conversion and data packet verification; and Co-Motor Processor (CMP) which assists in multi-axis or multi-motor systems, coordinating actions to achieve electronic shaft synchronization.

The DS200LDCCH1ANA communicates over Genius, CPL, and CBus networks, interfacing with Mark V main controllers, I/O modules, and operator stations. It features a 16-character digital display for real-time status and diagnostics, multiple LED indicators for communication, run, and fault status, and a dedicated reset button for soft reset. Onboard diagnostics and test points support field signal measurement and troubleshooting. The board includes six flash PROMs for field-reprogrammable configuration data and conformal coating on the PCB for environmental protection.

This board supports Mark V TMR/Simplex, EX2000 excitation, and DC2000 drive systems. Its ANA revision includes upgraded LCP bus protocols, improving Genius/CPL/CBus communication stability by up to 40% for hybrid networking with legacy and modern systems. MCP closed-loop control algorithms achieve motor speed/torque control accuracy of ±0.08% with a dynamic response time of less than 12 ms, making it suitable for high-precision turbine control. The board includes overcurrent, overvoltage, overload, and communication interruption protection, triggering drive resets when faults are detected.

Key applications include gas turbine control for startup, operation, and shutdown; steam turbine control; wind turbine automation; industrial drive control for motors, valves, and actuators; and process control in oil & gas and power generation industries. The board is compatible with standard Mark V cabinets, panel-mounted, and supports hot-swappable replacement in TMR systems.
