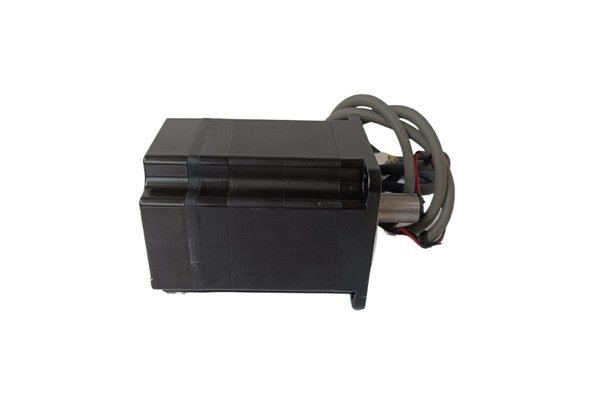

The Reliance Y-3023-2-H00AA is a high-performance brushless servo motor designed for precision motion control in demanding industrial environments. As part of the Allen-Bradley Y series (now under Rockwell Automation), this motor is engineered to execute complex positioning, speed, and acceleration tasks with exceptional reliability and accuracy.

The motor features an 8-pole design with high-energy neodymium magnets, providing low inertia for rapid acceleration and deceleration. Its rated speed of 4500 RPM and maximum radial load capacity of 35 kg make it suitable for heavy-duty applications requiring consistent torque output. The 230V AC three-phase winding ensures compatibility with standard industrial power systems.

A key feature of the Y-3023-2-H00AA is its integrated optical encoder with 2000 P/R resolution (2000 lines per revolution) and commutation signals. The encoder operates on 5V DC power and provides precise position feedback for closed-loop control systems, enabling micro-meter level positioning accuracy. This high-resolution feedback is critical for applications requiring exact synchronization and repeatability.

The motor is housed in a robust IP43-rated enclosure, offering protection against solid objects and water spray, making it suitable for various industrial environments including machine shops, packaging lines, and assembly facilities. The 3023 frame size represents the largest frame in the Y series light industrial line, delivering higher torque output compared to smaller frame sizes.

Physical specifications include dimensions of 140 mm × 80 mm × 80 mm (5.57 × 3.15 × 3.15 inches), a 16 mm (0.63 inch) shaft diameter, and a shipping weight of approximately 3.9 kg (8.7 lbs). The motor is designed for operation within 0°C to 40°C (32°F to 104°F) ambient temperature range and should be used in standard industrial environments with controlled humidity levels.

The Y-3023-2-H00AA requires a compatible servo driver to complete the positioning system. Recommended drivers include Allen-Bradley models 1398-DDM-019, 1398-DDM-020, 2093-AM02, 2094-AM02, and 2098-DSD-020. When installing, ensure rigid mechanical connections to the motor shaft to prevent coupling or belt slippage over time, and keep connecting cables as short as possible to minimize signal interference and degradation.

Key applications include robotic joint actuation, CNC machine positioning, packaging machinery, printing equipment, assembly lines, and any industrial automation requiring precise motion control with fast response times.
