The XC3S50A-4VQG100C is a field-programmable gate array from Xilinx Inc., part of the Extended Spartan-3A family. This FPGA solves design challenges in high-volume, cost-sensitive, and I/O-intensive electronic applications. Built on proven 90nm CMOS process technology, the device delivers an optimal balance of performance, power efficiency, and cost-effectiveness.

Architecture & Logic Resources: The XC3S50A-4VQG100C integrates 50,000 system gates with 1,584 equivalent logic cells organized into 176 configurable logic blocks (CLBs). Each CLB contains flexible look-up tables (LUTs) that implement logic functions plus storage elements used as flip-flops or latches. The device includes 704 slices providing abundant logic capacity for complex digital designs.

Memory Resources: The FPGA features a hierarchical SelectRAM memory architecture comprising 54 Kbits of block RAM (dual-port 18-Kbit blocks) for on-chip data storage and 11 Kbits of distributed RAM implemented within CLBs. Total RAM bits reach 55,296, offering substantial memory resources for buffering, FIFO implementation, and data processing applications.

Clock Management: Two Digital Clock Managers (DCMs) provide precise clock management capabilities including clock skew elimination, frequency synthesis (multiplication and division), phase shifting, and clock distribution. The device supports up to 667 MHz internal logic operation with 250 MHz maximum I/O switching frequency.

I/O Capabilities: With 68 user I/O pins, the FPGA supports multiple I/O standards including LVTTL, LVCMOS, and differential signaling standards. The device features 60 maximum differential I/O pairs, enabling high-speed serial communication interfaces. Input/Output Blocks (IOBs) control data flow between I/O pins and internal logic, supporting bidirectional data flow and 3-state operation with Double Data-Rate (DDR) registers.

Power Management: Operating with a nominal core supply voltage of 1.2V (range 1.14V to 1.26V), the device features Suspend and Hibernate modes that significantly reduce system power consumption. The flexible power management architecture makes it suitable for portable and power-sensitive designs.

DSP Capabilities: Three dedicated 18x18 multiplier blocks are integrated for efficient digital signal processing implementation. These multipliers accept two 18-bit binary inputs and calculate the product, supporting applications requiring arithmetic operations such as filtering, correlation, and mathematical computations.

Configuration & Development Support: The device supports multiple configuration interfaces including JTAG and industry-standard PROM interfaces. Complete Xilinx ISE design suite and free WebPACK development system software support enable comprehensive design flow from synthesis to bitstream generation. MicroBlaze and PicoBlaze embedded soft processors are available to reduce development risk.

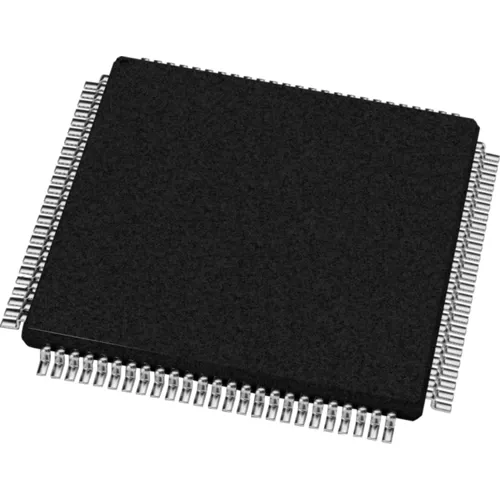

Packaging & Environmental: Housed in a 100-pin VTQFP (Very Thin Quad Flat Pack) package measuring 14x14mm with 0.5mm pitch, the device supports surface-mount assembly suitable for high-volume manufacturing. The package is RoHS compliant and lead-free with MSL Level 3 moisture sensitivity rating. Operating temperature range is 0°C to 85°C (junction temperature).

Target Applications: The XC3S50A-4VQG100C is ideally suited for a wide range of consumer electronics applications including broadband access equipment, home networking devices, display and projection systems, digital television equipment, communications infrastructure, industrial control systems, and portable devices. As a superior alternative to mask-programmed ASICs, it avoids high initial costs, lengthy development cycles, and design inflexibility while permitting field upgrades.
