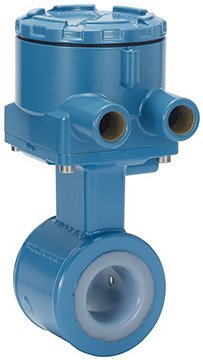

The Rosemount 8711 wafer flowtube sensor is designed for conductive liquids. Available in line sizes from 0.15 through 8 inches with a wide range of electrode materials, it meets diverse application needs .

The flangeless design makes it an economical, compact, and lightweight alternative to flanged magnetic flowmeters. Alignment rings provided with every sensor center the flowtube in the process line for easy installation .

Rosemount magmeter systems use pulsed DC technology providing continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm or greater .

The 8711 flowtubes are interchangeable with both the 8732E and 8712D transmitters. System accuracy is maintained regardless of line size or optional features. Each nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface or HART Communicator .
