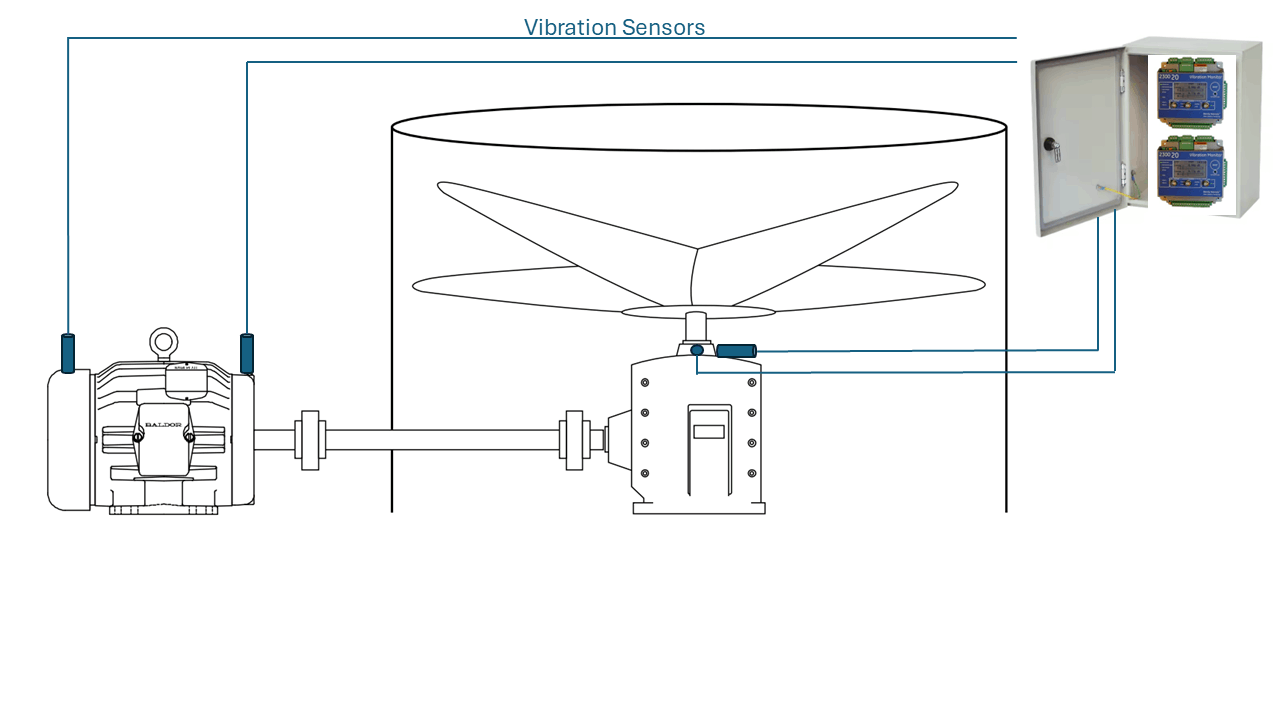

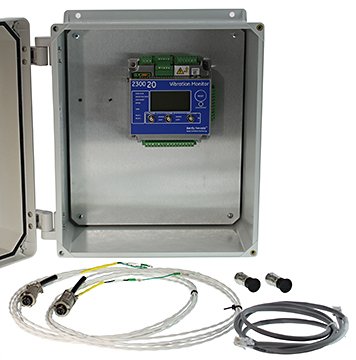

The Bently Nevada Cooling Tower Vibration Monitoring Package is a complete, pre-engineered solution designed to protect cooling tower fans and other general purpose equipment. The package includes the 2300/20 General Purpose Equipment Monitor, a display, an enclosure, a power supply, sensors, and all necessary cables, providing exceptional value for applications requiring continuous machinery monitoring and protection .

The 2300/20 monitor is a low-cost, configurable device ideal for general purpose machines. It provides four configurable transducer inputs that support 2- and 3-wire accelerometers, velocity sensors, or proximity sensors. Additionally, it features four temperature inputs compatible with Type E, J, K, and T thermocouples, as well as 2- or 3-wire RTDs . The monitor uses 24-bit ADC conversion for high-resolution signal processing and includes independent Alert and Danger setpoints for each channel.

The 2300/20 offers extensive output capability with six programmable relay outputs and four 4-20 mA recorder outputs. A dedicated buffered output provides access to the raw signal from each transducer input. An optional Modbus Gateway allows the monitor to provide static variables, statuses, and event list information directly to DCS, SCADA, or PLC systems, and is compatible with System 1 software for advanced diagnostics. The monitor maintains an internal 200-entry event list for time-stamped record of alarms and status changes .
