Product Description

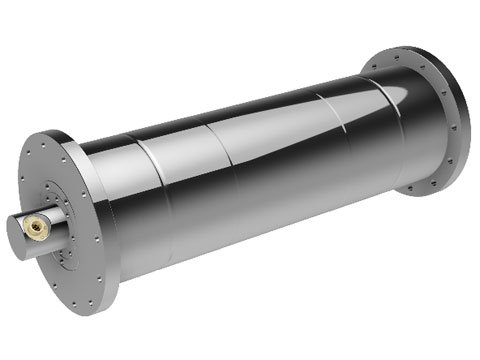

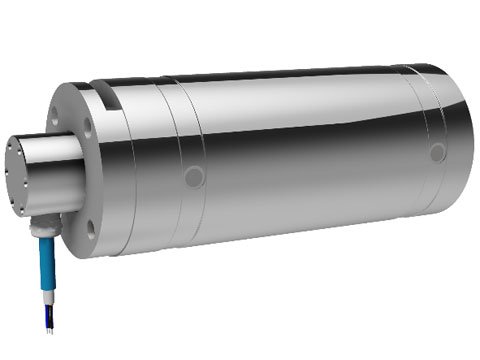

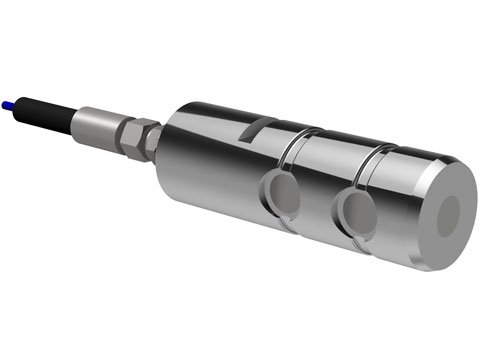

The ScanSense LS-3410-SP shear pin load cell electronics are molded and encapsulated inside the sensor, proven to be the best solution for EMC, potential leakage and long lifetime performance. Huge flexibility in design and a long record of field proven solutions has made these sensors popular among customers in the gas and oil industry. Typical applications are: Offshore Drilling, Offshore Production, Cranes, Winches, Mooring systems.

ScanSense

Shear Pin Load Cell - 4-20mA Output | ScanSense LS-3410-SP

±0.5% linearity, IP68, Ex ia IIC T4
MPN/Series: LS-3410-SP

Product Specifications

Manufacturer: ScanSense

Part Number: LS-3410-SP

Type: Shear Pin Load Cell

Linearity: ±0.5% FS

Accuracy: ±1% FS at ambient temperature

Output: 4-20 mA

Protection: IP68, Ex ia IIC T4 ATEX/IECEx

Documents: Product Specs
