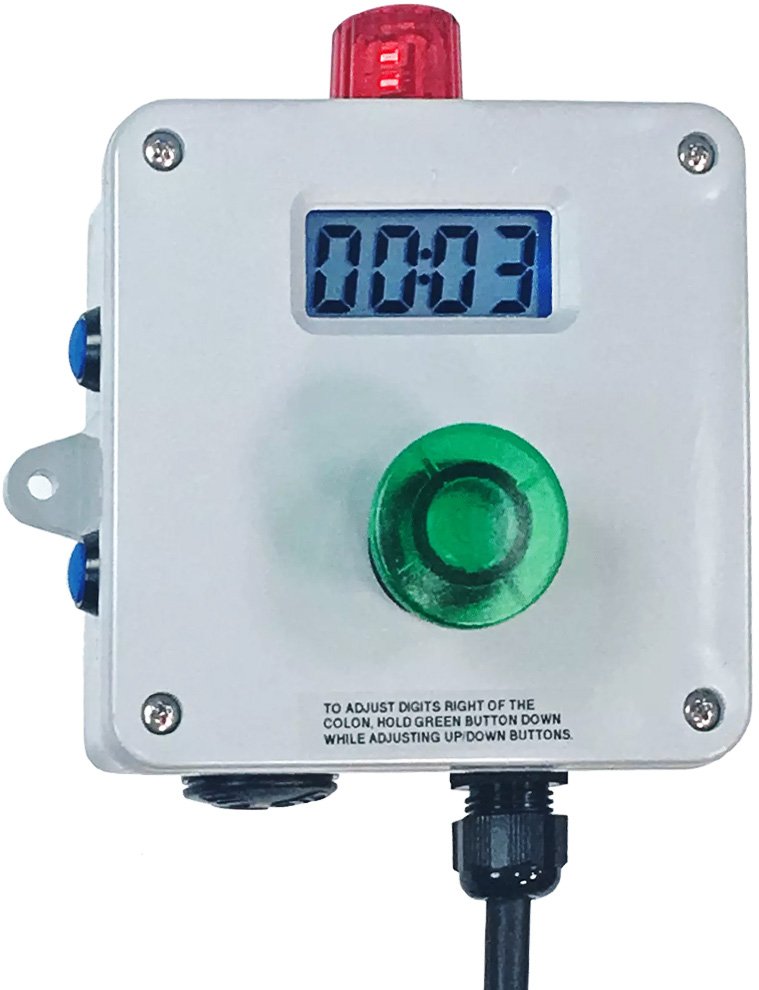

The Gizmo Engineering T5 is an AC-powered digital cycle timer designed to automate industrial processes by connecting to switches and control systems. With 12 selectable operating modes, it offers exceptional versatility for a wide range of timing applications in manufacturing, processing, and testing environments.

In the default mode, the green button starts and stops the timer. When the countdown reaches zero, the timer continues counting overrun upward, providing clear visibility of how long the alarm has been active. Pressing the green button again cancels the alarm. Other modes available via interior DIP switches enable different behaviors such as non-cancelable cycles, pause/resume, and more.

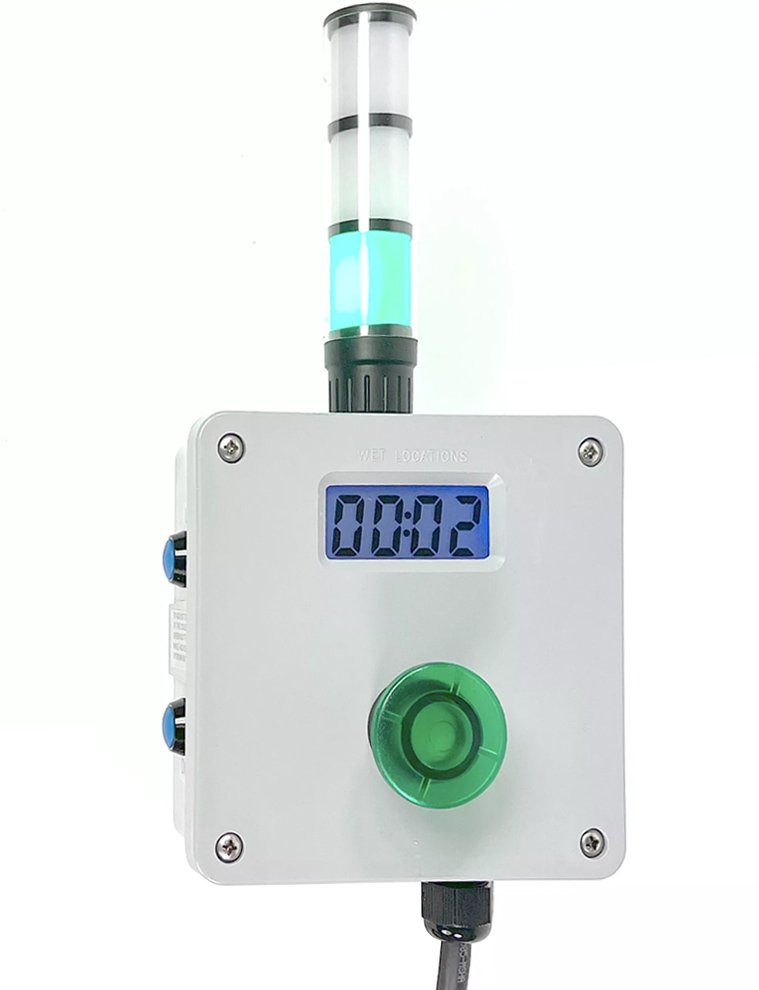

The T5 features large 18mm digits for easy reading at a distance, and a loud 103dB alarm ensures operators are alerted even in noisy environments. For enhanced visual indication, optional strobing beacon LED or stack light can be added. The IP68-rated enclosure provides complete protection against dust and water ingress, making it suitable for washdown areas and outdoor installations.

Typical applications include:

• Automated process control in manufacturing
• Plating and finishing line timing
• Test stand cycle timing
• Industrial equipment sequencing

Features

• AC powered for direct industrial connection
• 12 selectable operating modes
• Timing ranges: 99 minutes or 99 hours
• Accuracy: ±0.1%; Precision: ±0.001%
• 103 dB audible alarm at 2 ft
• Optional strobing beacon LED or stack light
• Large 18mm digits
• IP68 waterproof enclosure
• Operating temperature: -40 to 50°C
• Configurable via DIP switches
