Product Specifications
Manufacturer:Fluke Corporation
Product Number:FLK-V3000FC
Type:Wireless True RMS AC Voltage Module
Measurement Range:Up to 1000V
Accuracy:45-500 Hz: 1.0% ±3; 500-1 kHz: 2.0% ±3
Logging Memory:65,000 readings
Log Rate:Adjustable from 1 sec to 1 hour (default 1 min)
Wireless:Fluke Connect
Battery Life:400 hours minimum
Display:3 1/2 digit backlit LCD
Operating Temperature:-10°C to +50°C (14°F to 122°F)
Included Accessories:TL224 test leads, AC285 alligator clips, magnetic hanging strap
Documents: Product Manual, Product Specs
Product Description

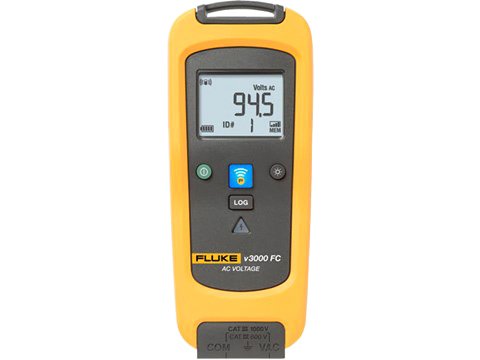

The Fluke V3000 FC Wireless True-rms AC Voltage Module is a fully functional true-rms voltage meter that wirelessly relays AC voltage measurements to other Fluke Connect enabled master units including the Fluke 3000 FC DMM, Fluke Ti200/300/400 Infrared Camera, PC via optional pc3000 FC Adapter and the Fluke Connect Mobile app.
The V3000 ships with TL224 test leads and AC285 Alligator Clips and a magnetic hanging strap. It can be used as a standalone meter or as part of the system, and logs 65,000 readings directly on the meter with adjustable log rate.
Fluke Connect with ShareLive is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android and iOS and works with over 20 different Fluke products.
The module features a 3 1/2 digit backlit LCD display, 400 hours minimum battery life, and operating temperature range of -10 to 50°C. Accuracy specifications are 1.0% ±3 (45-500 Hz) and 2.0% ±3 (500-1 kHz).
Resources & Documentation
Wireless True RMS AC Voltage Module - 1000V, Fluke Connect | Fluke V3000 FC
Product Specifications
Manufacturer:Fluke Corporation
Product Number:FLK-V3000FC
Type:Wireless True RMS AC Voltage Module
Measurement Range:Up to 1000V
Accuracy:45-500 Hz: 1.0% ±3; 500-1 kHz: 2.0% ±3
Logging Memory:65,000 readings
Log Rate:Adjustable from 1 sec to 1 hour (default 1 min)
Wireless:Fluke Connect
Battery Life:400 hours minimum
Display:3 1/2 digit backlit LCD
Operating Temperature:-10°C to +50°C (14°F to 122°F)
Included Accessories:TL224 test leads, AC285 alligator clips, magnetic hanging strap
Documents: Product Manual, Product Specs
