The PS6000 Series from Pro-face by Schneider Electric represents a new generation of industrial computers that bridge the gap between traditional HMI reliability and open PC performance. Designed to meet the growing demands of smart manufacturing, digitization, IIoT, and edge computing, the PS6000 Series delivers high-end HMI capabilities within a PC-based architecture that can be optimized for specific application needs.

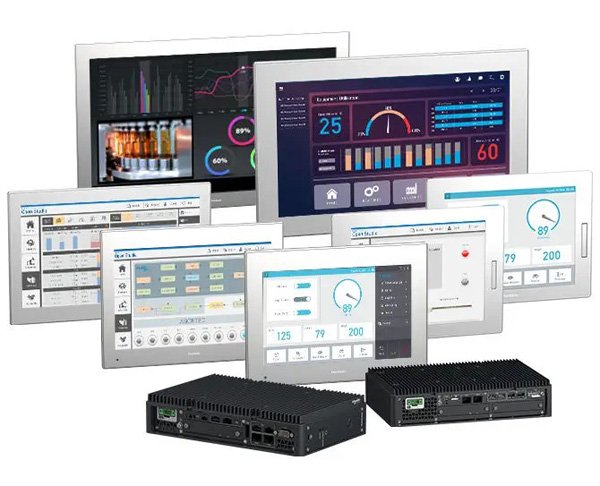

Built on the foundation of Pro-face's decades of HMI expertise, the PS6000 Series combines rugged industrial design with the flexibility of a modular PC platform. Whether deployed as a standalone box unit or integrated with display modules ranging from 12" to 22", these industrial computers provide the scalability, connectivity, and processing power required for modern automation environments.

Key Features & Advantages

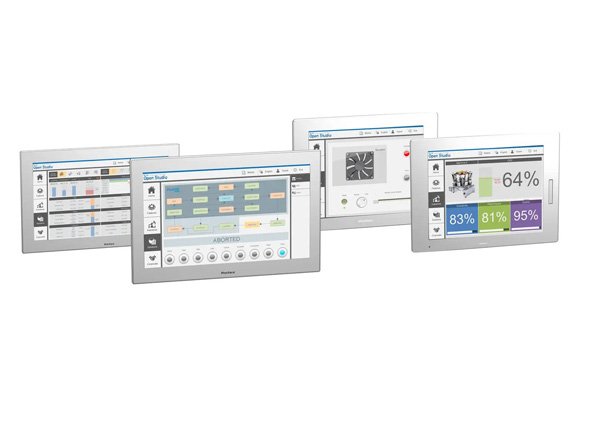

Modular Architecture for Design Flexibility: The PS6000 Series features a unique modular design that separates the computing core (Box Unit) from the display module. This architecture enables engineers to select the optimal combination of processing power and display size for each application. Display options include 12", 15", 15.6" wide, 19" wide, and 22" wide formats with either projected capacitive multi-touch or resistive touch technologies. The modular approach simplifies configuration changes during system design and commissioning, reducing engineering time and costs.

High-Performance Processing Options: Powered by the latest Intel Core processors, the PS6000 Series offers scalable performance across the product line. Advanced models feature Core i7 and Core i5 processors with Intel UHD Graphics 620, while standard models utilize Core i3 and Celeron processors. All configurations run Windows 10 IoT Enterprise 2019 LTSC (64-bit), providing a stable operating environment with long-term support. Memory is expandable up to 32 GB DDR4, and storage options include M.2 SSD and 2.5" HDD/SSD configurations.

Rugged Industrial Design for Harsh Environments: Designed and validated in Japan, the PS6000 Series meets stringent industrial durability standards. The front panel achieves IP66F and IP67F protection ratings when properly installed, along with UL Type 4X (indoor use only), Type 12, and Type 13 certifications. The system operates reliably in ambient temperatures from 0 to 55°C for panel mounting, with storage temperatures ranging from -30 to 70°C. These rugged characteristics make the PS6000 Series suitable for demanding manufacturing environments, including food processing, automotive, and heavy industrial applications.

Comprehensive Connectivity and Expansion: The PS6000 Series provides extensive connectivity options for integration into diverse automation ecosystems. Standard interfaces include dual Gigabit Ethernet ports with Wake-on-LAN support, RS-232C serial, USB 2.0 and USB 3.0 Type-A ports, and USB Type-C with DisplayPort functionality. For expansion, the Advanced Box Unit offers up to two expansion slots with configurations including PCI x1 + PCIe x1, PCIe x2, or PCI x2 options, enabling the addition of specialized interface cards, fieldbus adapters, or industrial communication modules.

Enhanced Cybersecurity and Data Protection: The PS6000 Series incorporates security features essential for connected industrial environments. Secure password boot UEFI prevents unauthorized access, while the optional write filter (UWF) and HORM (Hibernate Once Resume Many) functionality protect system drives and enable rapid startup. The platform supports RAID configurations for data redundancy and meets Achilles/IEC-62443 standards for cybersecurity in industrial control systems.

Intelligent Maintenance and Reliability: Built with Japan-engineered reliability, the PS6000 Series features fanless designs on select models, eliminating common failure points associated with cooling fans. The system supports smart maintenance capabilities, including remote monitoring and diagnostics. With a two-year warranty and global support infrastructure, the PS6000 Series minimizes downtime and ensures long-term operational stability.

Pre-Integrated Software and Configuration Tools: To accelerate deployment, the PS6000 Series ships with pre-installed software options including BLUE Open Studio for HMI/SCADA applications. Pro-face provides an online product configuration tool that simplifies model selection, ensuring rapid delivery of custom-configured units. The platform also supports RAID functionality, allowing users to configure redundant storage for critical applications.

Comprehensive Certifications and Compliance: The PS6000 Series meets international safety and environmental standards including UL 61010-2-201, cUL, CE, RCM, RoHS, REACH, and KC. Hazardous location certification (Class I Division 2 Groups A, B, C, and D) expands application possibilities for installations in potentially explosive environments.

Technical Specifications Summary

The PS6000 Series is available in two main configurations: Advanced Box Unit with Core i7, Core i5, or Celeron processors, and Standard Box Unit with Core i3 processor. Power options include 12-24 Vdc ±20% or 100-240 Vac. The system withstands vibration per IEC/EN 61131-2 standards (5-9 Hz at 3.5 mm amplitude, 9-150 Hz at 9.8 m/s²) and operates in humidity conditions of 10-90% RH non-condensing.

Applications

• Smart Manufacturing: Production line visualization, data collection, and MES interface
• IIoT and Edge Computing: Local data processing, predictive maintenance, and cloud connectivity
• Machine Control: HMI for CNC, robotics, and packaging equipment
• Process Industries: Pharmaceutical, food and beverage, and chemical processing
• Infrastructure: Water/wastewater treatment, energy management, and building automation
• Logistics: Warehouse management systems and automated sorting equipment
