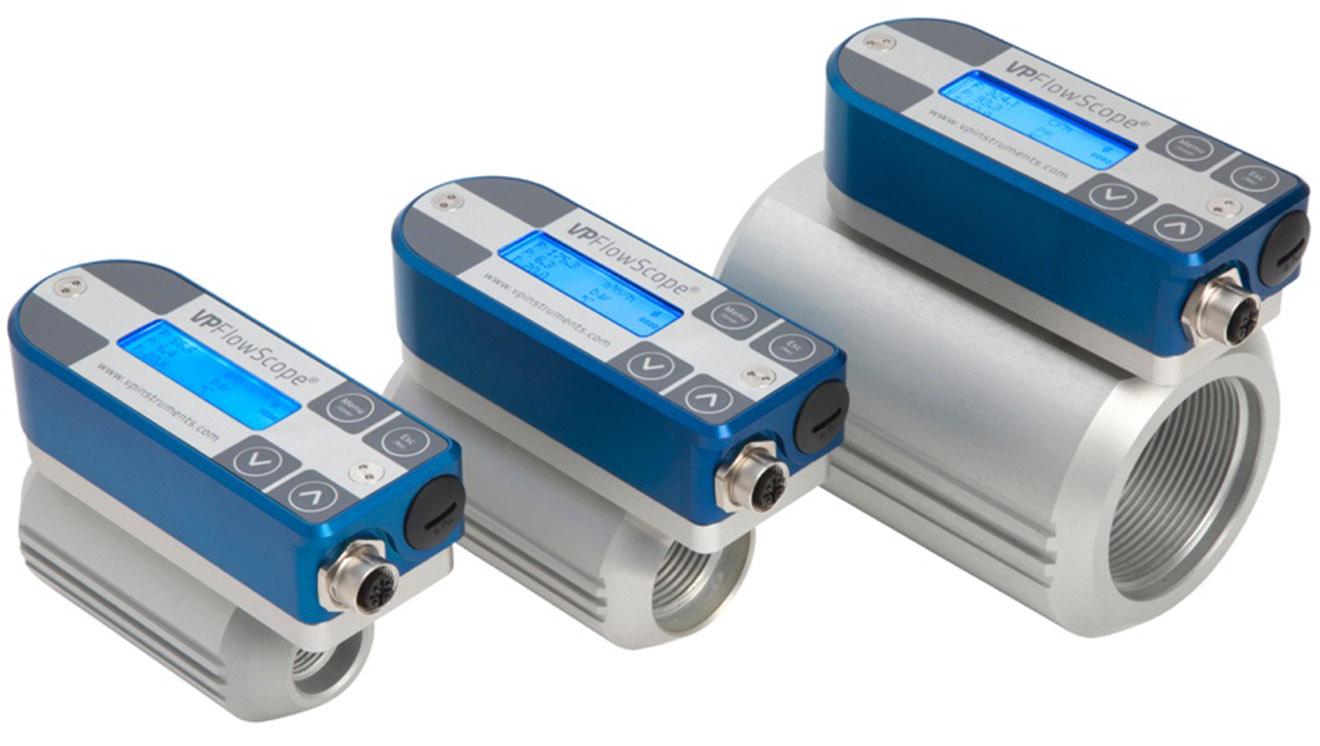

The VPInstruments VPFlowScope In-Line Flow Meter is designed for precise point-of-use consumption measurement in compressed air systems. It simultaneously measures mass flow, temperature, and pressure in both directions, making it suitable for both air and gas flow measurement. Beyond measurement, the VPFlowScope helps assess distribution network efficiency and potential cost savings, providing essential data for informed decision-making .

The optional three-line display allows the user to see real-time data. Combining this instrument with the data logger enables recording for certain periods of time. When you install our VPStudio software on your PC, you can process data, print reports, and make smart analyses to find out where and how you can save money in your organization. Flow ranges are available for 0.5in (0.13-50 scfm), 1in (0.54-150 scfm), and 2in (2.15-600 scfm) sizes .

Electrical specifications include power supply 12..24 VDC ±10%, power consumption 2.4 W (no flow) to 4.8 W (full flow) ±10%, and connection via M12 5-pin female connector or optional USB mini. Pressure rating is 250 psi max with a 500 psi upgrade available separately. The meter handles gases including compressed air, nitrogen, oxygen, and CO2 inert. Temperature range is 0 to 140°F. An optional 2 million data point data logger is available. Certifications include UL/CUL 14 AZ, CE/EN 61326-1 (Class A), EN61000-6-1. Bi-directional sensitivity and inlet/outlet tubing kits are available separately .
